Morning,

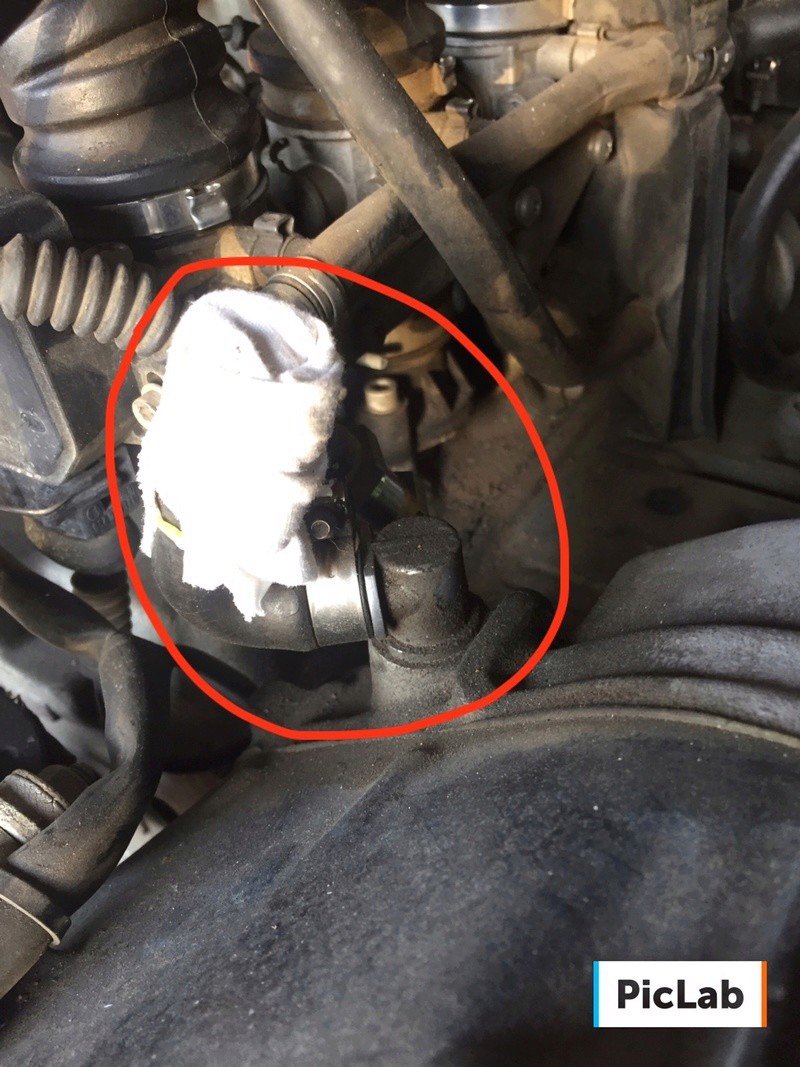

I'm going down the custom path, and have removed the airbox for some custom air pods... That leaves me with three pipes which used to connect to the airbox and come together in a small chamber within the airbox it's self.

I believe they are Crank Case breathers.... (if not what are they)?

can someone suggest what i could possibly li

nk them up with? what are they needed for? and what solution would best suit finishing them off now I have no Airbox?

Thanks

Chris



Point-Seven-five

avatar
Life time member
Life time member
It would be really cool if we knew what model and year your bike is.


__________________________________________________
Present:
1994 K75RT
1994 K75S
1992 K100RS

Past:
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


Inge K.

avatar
VIP
VIP
Place a small filter on the rearmost spigot (crankcase breather), be prepared
to a lot of dirt in this area.

The other two you can blind.....air/gas return and oil return.

To avoid the dirt (and filter), you can connect the air/gas return and crankcase
together but then you need a PCV valve in between, search more about this on
the K11OG forum.



Last edited by Inge K. on Sat Oct 15, 2016 8:23 pm; edited 1 time in total (Reason for editing : schpell.....sjpe......blame the beer.)


__________________________________________________
Inge K.
K100RS -86. (first owner), K1100LTSE -94.


Calvert

avatar
active member
active member
Point-Seven-five wrote:It would be really cool if we knew what model and year your bike is.

I have a 1989 K100RS 8V - seems it was imported from Germany



Inge K.

avatar
VIP
VIP
Calvert wrote: I have a 1989 K100RS 8V

The pictures in the first post is from a 16V.


__________________________________________________
Inge K.
K100RS -86. (first owner), K1100LTSE -94.


Calvert

avatar
active member
active member
Yep, my mistake. It is a 16v



Inge K.

avatar
VIP
VIP
Then it is a -90 year model cheers .


__________________________________________________
Inge K.
K100RS -86. (first owner), K1100LTSE -94.


8Back to top Go down    What does blind mean? on Tue Nov 15, 2016 4:33 am

Calvert

avatar
active member
active member
Can you please tell me what blind means?

and will it have an affect on the engine operation?



RicK G

avatar
VIP
VIP
Block them with a plug of sorts


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now
