1Back to top Go down   Oil on the clutch lever under the bike Empty Oil on the clutch lever under the bike on Wed Jun 13, 2018 12:25 am

timz10000

timz10000
Silver member
Silver member
Rode 400 miles this weekend in the Texas hill country on my '85 K100 after finally cleaning out my gas tank enough to get great fuel delivery, then snapped my clutch cable on the way home from work Monday. (This bike never strands me far from home, always breaks in a way that teaches me another lesson - in short, the perfect obsession...)

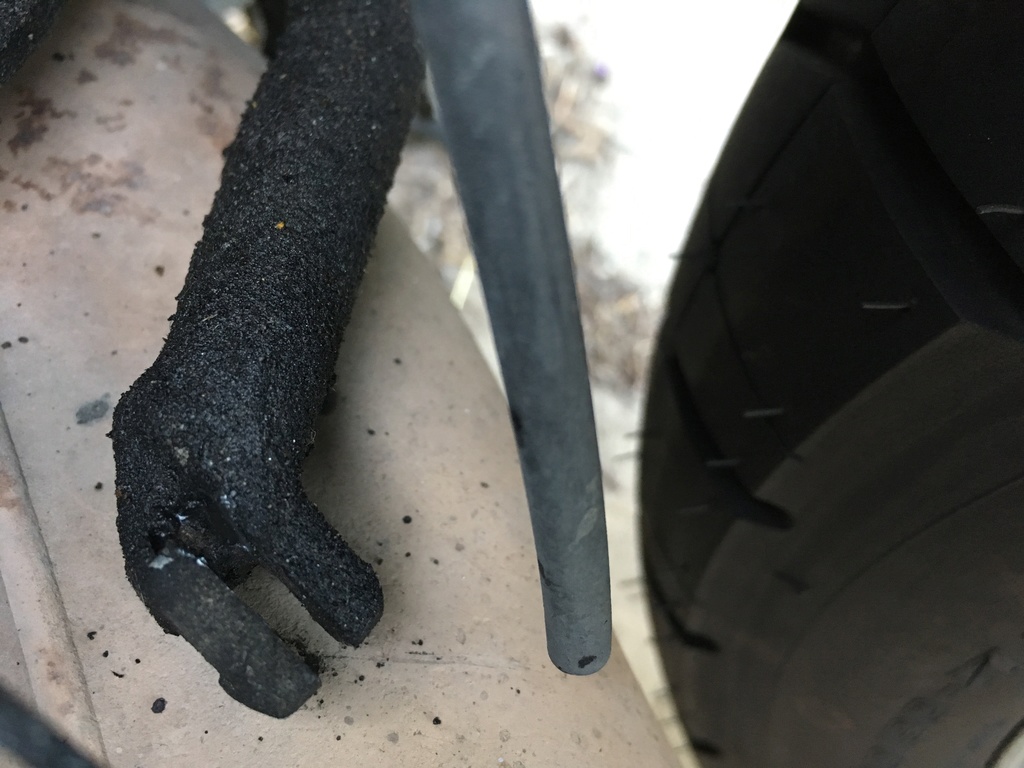

I ordered a replacement clutch cable and looked up how to replace it, but I see there's a lot of gunk on the clutch arm on the underside (see photos).

Is this something I can just clean up, or does it mean there's a bad seal or something that needs to be rebuilt at the back of the engine? I'm not noticeably losing engine oil or gearbox oil but I'm not too familiar with what's down there. Also: I have a complete '85 parts bike, so I can swap parts if recommended.

Any advice?

Oil on the clutch lever under the bike Img_1811
Oil on the clutch lever under the bike Img_1810


__________________________________________________
1985 K100


indian036

indian036
Life time member
Life time member
Looks mostly road grunge to me, though the darker colour on the clutch arm raises questions.

I'd give the area a good clean, then see if it seems to be showing oil leak evidence after that.

Bill


__________________________________________________
1985 K100RT  VIN 0028991  My original Very Happy   (Historic rego)
1985 K100RT  VIN 0029036  BOB the Blue Old Bike  (Historic rego)
1990 K100LT  VIN 0190452  Work in progress
1984 K100RT  VIN 0023022  Work needing lots of progress

1986 K100RT  VIN 0090542  Work needing lots and lots of progress
1993 K1100LT  VIN 0183046  Work in progress
1993 K75S  VIN 0213045  Newest toy, slightly non-original


Born Again Eccentric

Born Again Eccentric
Life time member
Life time member
@indian036 wrote:Looks mostly road grunge to me, though the darker colour on the clutch arm raises questions.

I'd give the area a good clean, then see if it seems to be showing oil leak evidence after that.

Bill
I'd say that your pics show definite evidence of an oil leak - you will probably find that the rubber boot is split, so the oil will probably be from the gear box. It doesn't take much oil to cover everything and that then acts as a dirt magnet to attract and accumulate road grunge and end up with that classic looking black oily paste covering everything.

As Indian says - first thing is to clean it off and then you will be able to either see the leak or, if it is very small, at least detect where it may be coming from.

Personally, I would have a rubber boot on order anyway though as my money is on it being split


__________________________________________________
Oil on the clutch lever under the bike Uk-log10 Oil on the clutch lever under the bike Sco-lo15Oil on the clutch lever under the bike Eu-log10
                              Paul  Oil on the clutch lever under the bike 905546712

"Heidi" K100LT 1991 (Grey) (VIN 0190172 Engine No. 104EB 2590 2213) - 5th owner. January 2014 (34,000 - 61,000 miles and counting....)
"Gretel" K100LT 1989 (Silver Grey) (VIN 0177324 Engine No. 104EA 2789 2211) - 4th+ owner. September 2015 (58,500miles and counting....). Cat C Insurance write-off rebuild Feb 17
"Donor" K100LT 1990 (Red)  (VIN 0178091 Engine No. 4489 2024) - 6th & final owner (crash write-off now donor bike).   June 2012 (73,000 miles) to November 2013 (89,500 miles)


Point-Seven-five

Point-Seven-five
Life time member
Life time member
My money is on that boot as well.


__________________________________________________
Present:
1994 K75RT
1991 K100RS
1988 K100RS SE

Past:
1994 BMW K75S
1992 BMW K100RS
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


5Back to top Go down   Oil on the clutch lever under the bike Empty Re: Oil on the clutch lever under the bike on Wed Jun 13, 2018 10:38 am

duck

duck
Life time member
Life time member
Probably a torn boot but sometimes the bolt in the clutch arm is not seated properly in the hole of the boot.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT (x2)
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
http://www.ClassicKBikes.com


TacKler

TacKler
Life time member
Life time member
The boot.  You probably won't see the split till the boot expands.  Not an expensive part.


__________________________________________________
Red 1991 K75S


timz10000

timz10000
Silver member
Silver member
@TacKler wrote:The boot.  You probably won't see the split till the boot expands.  Not an expensive part.

Thanks - I cleaned it all up and the boot is clearly split.
