I dismantled a non functional one to see if I could see anything wrong. 1980's electronics in all it's red tinged glory.

It is all painted with some sort of red varnish.

I had tried to reset etc but no joy and do not need to get this one repaired.

I do have some spare unit's but thought you might be interested to see what is in there.

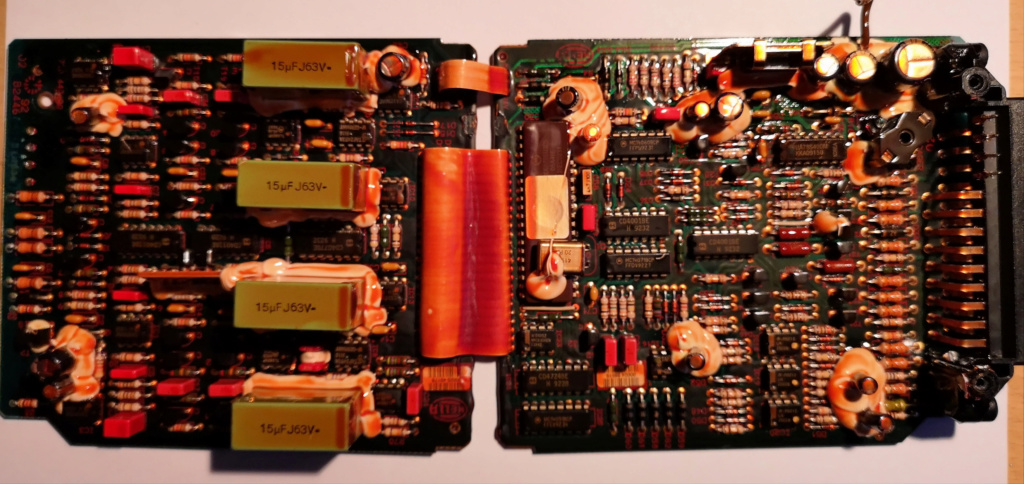

ABS 1 (2.5 Board 16 v) Two_bo10

ABS 1 (2.5 Board 16 v) Board_10

ABS 1 (2.5 Board 16 v) Board_11


__________________________________________________
ABS 1 (2.5 Board 16 v) Ir-log10

   ;BMW; K100RS Style Black 1987 105K Km     ;BMW; K1 Black 1993 51K Km     ;BMW; K1100RS Red 1993 70k miles  ;BMW; K100 16V Black (ex ElectricMonk)


2Back to top Go down   ABS 1 (2.5 Board 16 v) Empty Re: ABS 1 (2.5 Board 16 v) on Fri May 10, 2019 8:25 pm

Laitch

Laitch
Life time member
Life time member
At least the prawns look well-cooked. cheers


__________________________________________________
1995 K75 73,000 miles
ABS 1 (2.5 Board 16 v) Usa-lo10


3Back to top Go down   ABS 1 (2.5 Board 16 v) Empty Re: ABS 1 (2.5 Board 16 v) on Fri May 10, 2019 9:23 pm

Dai

Dai
Life time member
Life time member
CMOS technology... I see a few CD4011 NAND gates (known for dying when you look at them), a few op amps, a few X-NOR gates and what appear to be a couple of counters. I'd put money on one or more of the CMOS gates being dead.
