hello im in the process of wiring in the aftermarket controls on my K, I have the wiring diagram and have done some searching and Im pretty sure I got the right side control correct.

my left side control not so much and hence im here asking from a bit of info from the gurus.

I know I have to re wire the turn signals and install a aftermarket relay for them im ok on that

my problem is how to wire the setup I want correct on the left control I want  headlight on/off , Headlight High beam , turn signal

im almost there but want to double check before I blow up the garage .

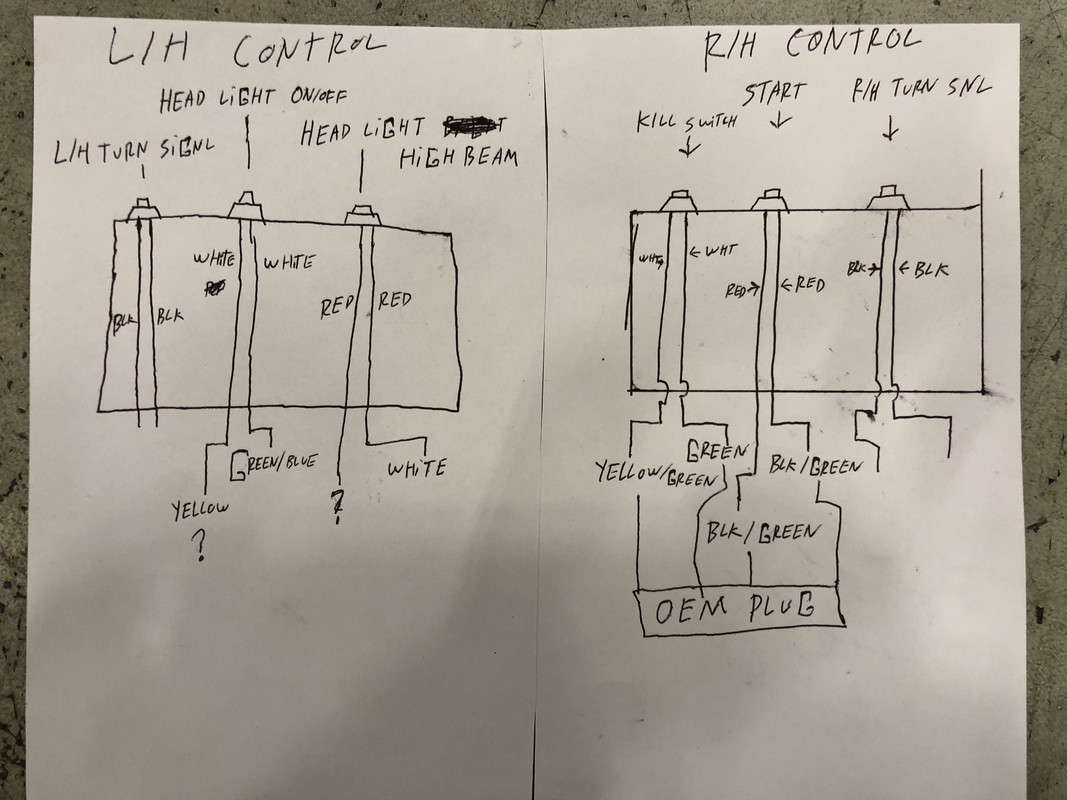

sorry for my crappy diagram

installing aftermarket controls 3 switch i need  help plz E08771-EB-8882-4644-A6-F9-203-C9-AD39379



Dai

Dai
Life time member
Life time member


__________________________________________________
'83 K100 upgraded to K100RS spec
Others...
'78 Moto Guzzi 850-T3, '79 Moto Guzzi 850-T3 California,'93 Moto Guzzi 1100ie California,
'03 Suzuki Blandit GSF600SK3 (NFS any more because wifey has claimed it)


Gr-Racing

Gr-Racing
active member
active member
Thanks for the reply, i seen it and pull some info from it but the wire color are a bit hard to understand



Gr-Racing

Gr-Racing
active member
active member
Sorry i just saw that my dislexia strikes again for the start is black/green and black/yellow



duck

duck
Life time member
Life time member
Left:
Pin #ColorDesc.
1WhiteHigh beam, indicator in cluster
2Open
3Blue/BrownLeft turn signal - ground to flasher relay Pin 8
4YellowLow beam
5Open
6BrownGround in
7White/YellowHeadlight power in from right combo switch
8Green/BlueLoad shed relay, F7, headlight power in to right combo switch
9Brown/YellowHorn relay - ground

Right:
Pin #ColorDesc.
1aBrown/WhiteTurn signal cancel - ground to flasher relay
1Black/YellowPower to starter from start button from Pin 6
2Green/YellowPower to lots of things (to Pin 9 via kill switch)
3Gray/BlueShorted to Pin 4 with gray wire (parking lights)
4White/YellowHeadlight power to left combo switch
5Blue/YellowRight turn signal (grounds)
6Black/GreenPower to start button from clutch switch and gear indicator
7Green/BlueShorted to Pin 4 with gray wire (power in for parking/head lights)
8BrownGround in
9GreenLoad shed relay, ignition switch


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT (x2)
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
http://www.ClassicKBikes.com


Gr-Racing

Gr-Racing
active member
active member
thanks for the help guys, got the right side working fine still working on the left control
