1Back to top Go down   Another spline question Empty Another spline question on Mon Jun 10, 2019 5:45 pm

Heresy23

Heresy23
active member
active member
Another spline question 746b4710

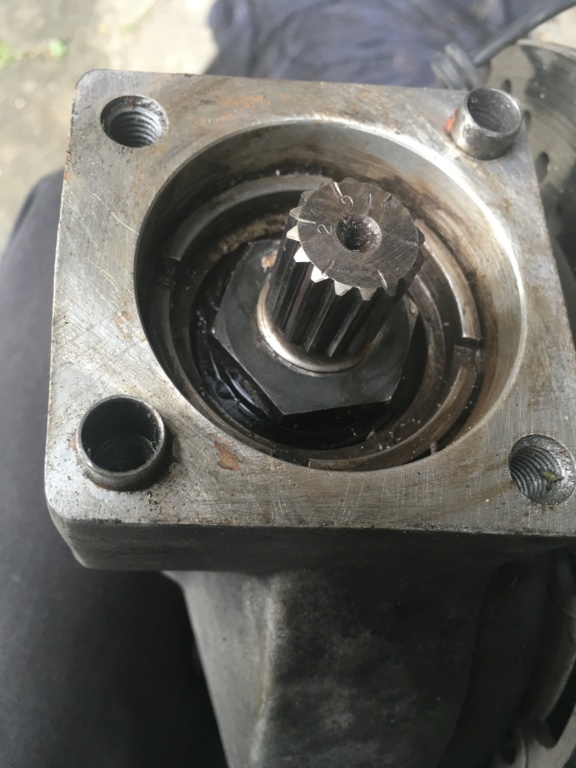

Another spline question 381ea710Ok hereís my final drive splines..they look good .....2 things...can u use gasoline to clean before I lube? And all the gunk thatís in the housing , coups I just squirt degreaser in there? I donít wanna ruin any seals ..and the red stuff is obviously a sealent ...should I leave it there?....Iím doing this now ....thanks
Another spline question 84f19f10
Another spline question 03c12310
Another spline question 34cc9710
Better pics


__________________________________________________
85ík100 RT 73k


2Back to top Go down   Another spline question Empty Re: Another spline question on Mon Jun 10, 2019 6:01 pm

volador

volador
active member
active member
Gasoline, kerosene (is best), denatured alcohol, brake cleaner, a good degreaser all work

It can't hurt to leave the sealant to keep out water or apply a new bead

Be on the look out for a another 16 tooth drive shaft


__________________________________________________
1984 K100RS† 1991 K100RS


3Back to top Go down   Another spline question Empty Re: Another spline question on Mon Jun 10, 2019 6:30 pm

Heresy23

Heresy23
active member
active member
Thanks...I decided not to pull out the drive shaft and lube it ....next tire change...I donít wanna go thru the hassle of pulling out and re-aligning....I feel like since itís my first time I might have a issue and I was told itís probably fine anyways
@volador wrote:Gasoline, kerosene (is best), denatured alcohol, brake cleaner, a good degreaser all work

It can't hurt to leave the sealant to keep out water or apply a new bead

Be on the look out for a another 16 tooth drive shaft


__________________________________________________
85ík100 RT 73k


4Back to top Go down   Another spline question Empty Re: Another spline question on Mon Jun 10, 2019 7:50 pm

duck

duck
Life time member
Life time member
@volador wrote:Be on the look out for a another 16 tooth drive shaft

Why? They last much, much longer than the Z20 ones.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT (x2)
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
http://www.ClassicKBikes.com


5Back to top Go down   Another spline question Empty Re: Another spline question on Mon Jun 10, 2019 8:27 pm

volador

volador
active member
active member
Good to have a spare on hand


__________________________________________________
1984 K100RS† 1991 K100RS


6Back to top Go down   Another spline question Empty Re: Another spline question on Thu Jun 13, 2019 7:54 am

GF Wollongong

GF Wollongong
Silver member
Silver member
While we're talking splines ...

Has anyone found a use for a worn drive shaft? Got one in the garage and can't bring myself to throw it out ... can't think what to use it for?

Hoarder



7Back to top Go down   Another spline question Empty Re: Another spline question on Thu Jun 13, 2019 8:05 am

MartinW

MartinW
Life time member
Life time member
You can renew the splines. Cut off the old ones and weld on a new set from Motobins.
Regards Martin.


__________________________________________________
K75s Hybrid


8Back to top Go down   Another spline question Empty Re: Another spline question on Thu Jun 13, 2019 10:19 am

Point-Seven-five

Point-Seven-five
Life time member
Life time member
I have heard of people replacing the u-joint.† I have found the part number in the past and they are available for about $28.† Any shop that does drive shafts should be able to do the machine work.


__________________________________________________
Present:
1994 K75RT
1991 K100RS

Past:
1994 BMW K75S
1992 BMW K100RS
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175
