1Back to top Go down    '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 3:31 pm

diesputnikdie

avatar
active member
active member
Got the cylinder head off last night to replace the cylinder head gasket and clean out the carbon when I noticed a heavy amount of white material on the exhaust valves.  It didn't come off with solvent like the carbon did elsewhere, and it was as hard as a ceramic.  As far as I know, the valve head should be smooth and reflective like stainless steel but it was on there so well that I just can't tell if it needs to be removed.

Should I grind this stuff off and recheck clearances?  Do I need new valves? I see that the valves (#11 34 1 460 201) are in the $135USD range (For one? For a set? It's unclear) so an aftermarket part would be desirable.  The problem is that the only info I can find in regards to the dimensions of the valve is a diameter of 30mm.

Thanks for the help!

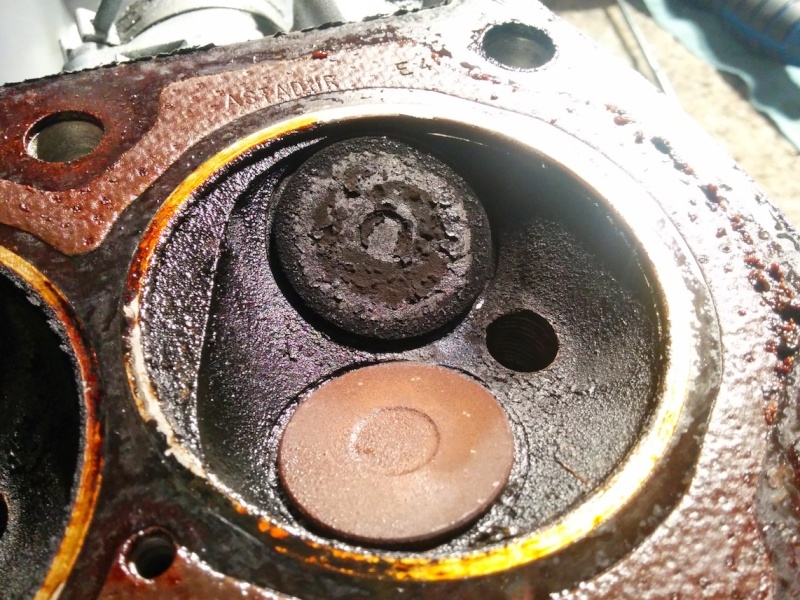

Here's a pic before cleaning.  Nasty!

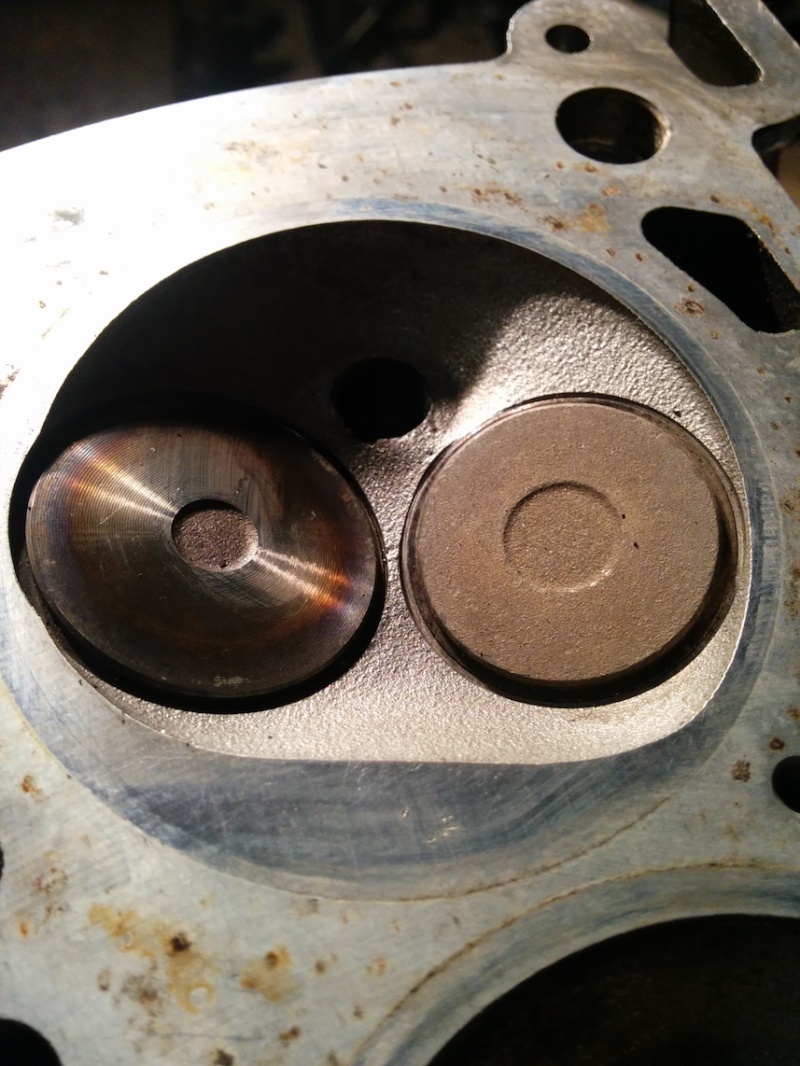

And here's a pic after.  You can see that the condition of the exhaust valve didn't change much, if at all:


__________________________________________________
1985 BMW K100RS (SN:0040831)


2Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 3:51 pm

tgolden

avatar
Silver member
Silver member
The are several BMW service manuals available in the download section. There are the Haynes & Clymer manuals, and the BMW Repair manual. They detail the specs on the valves.

I don't think the head of the valve that you can see is that important. If that's a burnt on coating, it may affect the thermal properties of the valve. The most important part is the face that mates with the valve seat. You may want to clean that up with some lapping compound since you've pulled the head.

A test in the BMW Repair Manual indicates that to check the valves for leaks, fill the inlet and exhaust ports with fuel. No fuel should leak past the valve heads. Also, you should inspect the seats. The manual indicates that the seats must not exhibit any chatter marks. The Haynes & Clymer manuals give good information on inspecting the valves.

The valves in the picture look normal. But, since you've got the head off, you should do a more thorough inspection.


Regards


__________________________________________________
1985 K100RS USA Model WB1051300F0042533 - Original Owner
Delivery: 04/85 - Motorradhaus Ebert, Höchberg, Deutschland


3Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 4:28 pm

diesputnikdie

avatar
active member
active member
Thanks for the quick reply.

That's comforting to know.  I should be able to get around to this procedure sometime during the week and report back.

The valve seat is the item reported by BMW as #3 "Spring Pocket" on this diagram, correct?:


__________________________________________________
1985 BMW K100RS (SN:0040831)


4Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 4:39 pm

tgolden

avatar
Silver member
Silver member
No, the valve seat is pressed into the head. It's where the valve face contacts the head.

You should pull the valves and inspect after you do the fuel test for leaks.

Regards


__________________________________________________
1985 K100RS USA Model WB1051300F0042533 - Original Owner
Delivery: 04/85 - Motorradhaus Ebert, Höchberg, Deutschland


5Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 4:53 pm

Kyle10

avatar
Life time member
Life time member
If you're going that deep consider a set of valve seals.
Cheap (additional) insurance.



6Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 5:01 pm

charlie99

avatar
VIP
VIP
maybe this will help




and yes do the valve stem seals ....


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


7Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 5:05 pm

tgolden

avatar
Silver member
Silver member
Yes, I would replace the valve seals while you're there.

How many miles on this motor?

You really should read the valve section of the service manuals/repair manuals and do a proper inspection while you have the head off.

Regards


__________________________________________________
1985 K100RS USA Model WB1051300F0042533 - Original Owner
Delivery: 04/85 - Motorradhaus Ebert, Höchberg, Deutschland


8Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Mon Feb 24, 2014 10:12 pm

RicK G

avatar
VIP
VIP
A working bike or any engine will have that baked on coating on an exhaust valve.
The only reason it's not black is that the temperature is much higher on an exhaust valve.
I usually put the stem in a lathe and spin it up then use some 120 grade sandpaper to remove it then give it a bit of a polish with 240 grade paper.
Don't give it a good shine because it will only last about an hour at most.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


9Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Tue Feb 25, 2014 3:01 pm

diesputnikdie

avatar
active member
active member
Thanks for the tips.  I ordered the last set of seals from eBay and found the relevant section in the Clymer manual.

I took the Dremel with 120 grit sandpaper then 240 to the valve and things are looking nice and clean.  Not polished, but not faux-ceramic.  All of the seats look to be in fantastic condition and every valve passed the leak test mentioned above. I'll take a more thorough look with the manual this weekend.

The odometer that is on the bike list ~48,000mi, but with the frequency these things were changed out it's unlikely that the real mileage.  The title doesn't state any mileage and the PO had no supporting documentation.  Worth the risk at the price I got it!


__________________________________________________
1985 BMW K100RS (SN:0040831)


10Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Tue Feb 25, 2014 10:26 pm

tgolden

avatar
Silver member
Silver member
If you disassembled the valves from the head, make sure you reassemble all the parts in their original position. If you aren't sure about that, then you should lap the valves/seats to ensure a good seal and repeat the fuel test after reassembly. Be very careful not to leave any grit in or around the valve stems, faces, and seats.


After reassembling the motor, do a compression check and leak-down test to ensure you have a good seal and no leaks.


__________________________________________________
1985 K100RS USA Model WB1051300F0042533 - Original Owner
Delivery: 04/85 - Motorradhaus Ebert, Höchberg, Deutschland


11Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Thu Mar 13, 2014 1:04 am

diesputnikdie

avatar
active member
active member
I finally got the valve stem oil seals in the mail and got around to replacing them. Clymer recommends the use of a special BMW tool 111250 to remove the seals, but after spending a gentle thirty minutes with a variety of pliers to remove only one seal I realize there must be a better way.

Any suggestions on a DIY procedure for removing the valve stem oil seal? I'm happy to buy the correct tool for the job but I would probably never use it again.


__________________________________________________
1985 BMW K100RS (SN:0040831)


12Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Thu Mar 13, 2014 1:30 am

tgolden

avatar
Silver member
Silver member
http://www.ebay.com/itm/like/261415348189?lpid=82

Check this out.

You could also check your local auto parts store to see what they have. A euro parts store might be best.

Regards


PS

This might be worthwhile as well.

http://www.ebay.com/itm/Automotive-Valve-Stem-Seal-Seating-Pliers-Tool-Kit-Remover-Installer-Case-HD-/400546302523?pt=Motors_Car_Truck_Parts_Accessories&hash=item5d426b8a3b&vxp=mtr


__________________________________________________
1985 K100RS USA Model WB1051300F0042533 - Original Owner
Delivery: 04/85 - Motorradhaus Ebert, Höchberg, Deutschland


13Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Thu Mar 13, 2014 1:44 am

RicK G

avatar
VIP
VIP
The removal tool does make the job very easy and is worth having.  They don't go on like the usual seal they have almost a barbed fitting and you destroy them getting them off even with the right tool. Maybe BMW did it like that so we would buy new ones every time.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


14Back to top Go down    Re: '85 K100 2V Exhaust Valves Light Gray on Thu Mar 13, 2014 3:44 pm

diesputnikdie

avatar
active member
active member
Thanks for the info.  I ended up picking up this one from Amazon (the shipping is a bit quicker and the price is roughly the same):http://amzn.com/B006Z58VUU


__________________________________________________
1985 BMW K100RS (SN:0040831)
