1Back to top Go down    Driveshaft, diff and splines on Sat May 03, 2014 3:58 pm

Fliggy

avatar
active member
active member

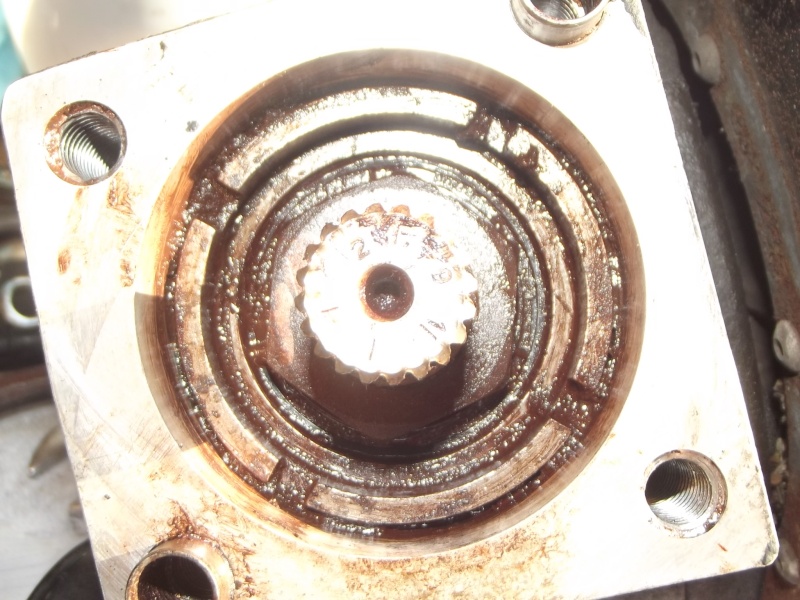

Now I reckon the splines on the driveshaft are knacked but the diff is just about ok. But, then again, that could me lying to myself again. Any thoughts would be gratefully received. Can anyone recommend anywhere in the UK to get this work done by any chance? I have heard Motobins do a refurb but is there anywhere else? Thanks for looking.


__________________________________________________
Fliggmeister :suspect:
1991 K100RT (iC) ViN:0097731


2Back to top Go down    Re: Driveshaft, diff and splines on Sat May 03, 2014 4:57 pm

charlie99

avatar
VIP
VIP
those splines look quite worn ....
and my guess, will cause a new tail shaft to look like that old one pretty soon
I had a tailshaft that was a repaired one with that reweld process new outer spline ...
 but when installed still had a fair bit of movement ...meaning it seemed to a close fit ...not a tight one, some 60,000 ks and its toast.
don't know in fact that the add on section was indeed the same that motoworks etc sells ...but worth investigating a bit further .

have replaced the shaft with a original bmw unit and its tighter than repaired shaft ever was  ...wonder if there is a slight difference between the rewelded add on spline and the bmw units ...
just a heads up


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


3Back to top Go down    Re: Driveshaft, diff and splines on Sat May 03, 2014 6:22 pm

kartooo

avatar
Silver member
Silver member
Bruno's has one heck of reputaion for bmw splines. he might have something in stock.
he also gives you the option for a u joint with grease fittings.
located in canada.

http://www.brunos.us/index.html



Last edited by kartooo on Sat May 03, 2014 6:45 pm; edited 1 time in total


__________________________________________________
85 k100rt current
04 vulcan 1500 classic sold
07 bonneville black sold
05 fjr1300 sold
04 r1150rt sold
91 k100lt sold
r80rt sold
85 K100 sold


4Back to top Go down    Re: Driveshaft, diff and splines on Sat May 03, 2014 6:40 pm

Oldracer

avatar
active member
active member
They both look no good, not sure there are any refurb guys in the UK, if you have no luck PM me, i have a good diff and its original drive shaft from a late low miles (1990) K100rt, £95 the pair.

Ben

http://www.bskspeedworks.co.uk


5Back to top Go down    Re: Driveshaft, diff and splines on Sat May 03, 2014 9:56 pm

RicK G

avatar
VIP
VIP
At 95 quid the pair you wont go past that.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


6Back to top Go down    Re: Driveshaft, diff and splines on Sun May 04, 2014 8:40 am

Fliggy

avatar
active member
active member
Thanks for replies; ok, my bits have lost their usefulness.

Ben, I'll be making contact, that's a great offer, thank you.


__________________________________________________
Fliggmeister :suspect:
1991 K100RT (iC) ViN:0097731


7Back to top Go down    driveshaft on Sun May 04, 2014 12:42 pm

john87bmw

avatar
active member
active member
I got a brand new genuine bmw drive shaft, £100 you can have it, better than all them "repaired" things....

john..

Pm me if interested.



8Back to top Go down    Final Drive on Mon May 05, 2014 1:15 am

Tom Grabau

avatar
Life time member
Life time member
G'Day All,again,this subject has most likely been covered before but here goes.. Decided to change all the oils in the 93 75S after the run down to Robertson with Gaz and Ulli.The oil out of the gearbox was as clean as but the oil out of the Final Drive was pitch black whereas previously was pretty clear.Any advice on this issue much appreciated.Thank you in advance. Cheers Tom



9Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 1:45 am

RicK G

avatar
VIP
VIP
Unless there was some metal flake on the drain plug I would not be overly concerned. Put clean oil back in and keep an eye on it. sometimes the plug gets furry but so long as you cant feel any grit in it
Did it smell burnt.
It's possible that you used a different brand last time with a higher detergent content and it lifted all the black residue from the inside and drained it out.
I can't think of anything else in there that would cause the oil to get like that.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


10Back to top Go down    Final Drive on Mon May 05, 2014 2:01 am

Tom Grabau

avatar
Life time member
Life time member
G'day Rick,thanks for reply.Have not given it the sniff test yet but will get back to you on that one.No metal bits on the plug and I can't remember if a different brand of oil was used. Will lube the splines which lool pretty good, and put it all together and keep an eye on things.Cheers Tom



11Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 6:20 am

charlie99

avatar
VIP
VIP
yep have pulled a fair bit of black stuff out of the rear diff during a pull down tom ...

hope it goes well mate ...

cheers !


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


12Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 7:34 am

john87bmw

avatar
active member
active member
Hi There,

Now, i am now expert on this, cos it is a long time since i had one in bits, but so far as i can remember, if teh rubber gaitor between the gearbox and swing arm is knackered, all muck and water gets in, runs down inside the swing arm, and straight into your final drive, hence contaminated oil.... Not good!!!!

john..



13Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 4:08 pm

sidecar paul

avatar
Life time member
Life time member
No John, the 'muck/water' can't get past the final drive oil seal. Evil or Very Mad

Paul.


__________________________________________________
'84 K100RS (0014643) (owned since '85), 86 K100RS (0018891) with Martello sidecar (built as an outfit in '88),
'51 Vincent (since '67),'72 Montesa Cota (from new), '87 Honda RS125R NF4 (bought 2015)
....No CARS never ever!


14Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 5:27 pm

john87bmw

avatar
active member
active member
Ahhh, i see!! Wonder where the crap comes from though.. Must get in somewhere.. Say i take the top off my lathe gearbox, the oil looks the same as when it was put in there, nice and clean. Wonder if it sucks in as the final drive heats up and cools down?? No idea really!!

john..



15Back to top Go down    Final Drive on Mon May 05, 2014 7:22 pm

Tom Grabau

avatar
Life time member
Life time member
Thanks Charlie, there was no 'burnt' smell but before taking the FD off,there was a bit of a rumble whilst turning the wheel.Another thing was that FD and gearbox oil were drained into one container.
Measured the combined quantity of oil which was about 950ml, well short of the 1110 ml required.Pretty sure that 260ml were put into the FD on last change.
Thanks for any advice. Cheers Tom



16Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 7:32 pm

john87bmw

avatar
active member
active member
Only a wild guess here, possibility though... What is the chance that the final drive was a bit noisy, so someone put some "molyslip" in with the oil???? Now that would make it black. So far as i know, only two things make oil black, one; dirt two; oxidation of the oil. Cannot see the oil in a diff getting hot enough for that, but then again, if you drained out, say, a car axle years ago, it was always black....

I would just put in clean oil and see what happens... Cannot hurt.....

john...



17Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 9:23 pm

RicK G

avatar
VIP
VIP
@Tom Grabau wrote:Thanks Charlie, there was no 'burnt' smell but before taking the FD off,there was a bit of a rumble whilst turning the wheel.Another thing was that FD and gearbox oil were drained into one container.
Measured the combined quantity of oil which was about 950ml, well short of the 1110 ml required.Pretty sure that 260ml were put into the FD on last change.
Thanks for any advice. Cheers Tom
When there is no oil in there they will rumble a bit as the oil damps the noise. All I can suggest Tom is to put the new oil in and check it again in say 1000km and see how it is. Just dip something into the hole and check that way.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


18Back to top Go down    Re: Driveshaft, diff and splines on Mon May 05, 2014 9:42 pm

duck

avatar
Life time member
Life time member
Was there much gear oil near the FD input splines when you took the FD off? At this age it's not uncommon for the pinion seal to have grown hard and start leaking.


__________________________________________________
Current stable:
86 Custom K100 (K75C fairing, K75 Belly pan, Ceramic chromed engine covers, 32/10 final drive)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
93 K1100RS
94 K1100RS
93 K1100LT
91 K1
93 K75S
http://www.ClassicKBikes.com


19Back to top Go down    Final Drive on Tue May 06, 2014 12:33 am

Tom Grabau

avatar
Life time member
Life time member
Thanks Duck,yes I thought the FD input shaft area was a bit sloshy perhaps some oil mixing it with the spline grease. Will keep a lookout and report back.Cheers Tom



20Back to top Go down    Final Drive on Mon Jun 23, 2014 11:30 pm

Tom Grabau

avatar
Life time member
Life time member
G'day All, Have covered about 500k since last FD oil change.Checked the colour of the oil and it was already blackening.It seems as though oil is getting past the seal into the spline area and vica versa. Any thoughts on this issue??? Thanks muchly in advance. Cheers Tom



21Back to top Go down    Re: Driveshaft, diff and splines on Tue Jun 24, 2014 12:01 am

RicK G

avatar
VIP
VIP
Hi Tom, Have you lost any oil? Has the level dropped significantly.
From memory the oil was fairly black at the last change and that 90 gear oil is hard to drain all of it so may just be contaminated by the left overs.
I have come across a thread on a forum elsewhere that the guy claims to have put 200ml of oil into the swinging arm and let that do the lubrication of the splines, he claimed it was quite sucessful.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now
