I bought this 1987 K75C off a mate as a restoration project and for this year's Scrapheap Adventure Ride. Non-goer of course, in fact nothing worked but it would turn over if the starter solenoid was shorted across the terminals.

K75C project - sort of runs. P3070010
Nothing seemed to be too far wrong so I set about disconnecting and reconnecting things. This worked, it turns over, has lights etc and spark. Radiator has a pinhole but I've got another one coming so all good there.

Next step was to get it to run. New el-cheapo injectors from our friends in China ($48 for a set of 6). Still wont go. Sit and have a look for a while. Aha - spark plug leads are the wrong way around. Fix that and it goes - sort of. Its running on about 2 1/2 cylinders. No. 1 sort of backfires to the point that I can see flame around the intake where the arrow is on the photo below. The rubber is split which probably doesnt help. I'm wondering if the intake valve on this cylinder is sticking a little and not closing fully. It seems to run ok at around 2000-5000 but that might be an illusion. Any suggestions??
K75C project - sort of runs. 20230310



2Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Fri Mar 10, 2023 2:12 am

jbt

jbt
Life time member
Life time member
Check valve clearance, normally it wears bery slowly but has to be adjusted every 100 000 kms...
It won't run smoothly if the intake rubbers are worn. Same thing for the S rubber pipe between intake and coils.


__________________________________________________
Let us enjoy the transient delight
That fills our fairest day.


3Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Fri Mar 10, 2023 2:47 am

Rockman

avatar
Life time member
Life time member
I should have mentioned - it has 85k km on the odo. Based on the general condition, I'd say that's about right. The plan is to dismantle the thing and do a resto so many things will get fixed or adjusted as I go, including the valve clearances.



4Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Fri Mar 10, 2023 7:43 am

bad boy

bad boy
Life time member
Life time member
jbt wrote:It won't run smoothly if the intake rubbers are worn. Same thing for the S rubber pipe between intake and coils.
jbt, excellent suggestion.

Rockman, you might ask why?
Our bricks are ageing, regardless if you run them /high mileage/or let them standing in a barn /low mileage/.
So does the rubber.

After 35 years, it is not too bad an idea to replace all the rubber parts on the intake side.
Everything is still available /afaik/.
Good luck and lots of success


__________________________________________________
Cheerz, David

K75C project - sort of runs. 9438-010

____________________________________________________________________________
1997 Peraves Super Ecomobile: a Kevlar reinforced monocoque with outrigger wheels, seating two.
K100 fork, monolever, headlight, indicators, K1100RS gearbox and K1200RS 589 engine, rear wheel


5Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Fri Mar 10, 2023 2:47 pm

charlie99

charlie99
VIP
VIP
Yet another one Phil   ?

Good onya
Hopefully will come together for you eh ?


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


6Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Fri Mar 10, 2023 10:28 pm

Rockman

avatar
Life time member
Life time member
charlie99 wrote:Yet another one Phil   ?

Good onya
Hopefully will come together for you eh ?
Yep, bad dose of K Pox as I've had over a dozen of them so far. This one will be ok in the end. Pull it apart, find out what isnt right, then put it back together. Simple..



7Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Sat Mar 11, 2023 12:22 am

duck

duck
Life time member
Life time member
It will never run right. You bought a bike that was designed and built in the northern hemisphere. The fuel molecules will always spin in the wrong direction (like your toilets) resulting in suboptimal performance. lol!


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


8Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Sat Mar 11, 2023 1:51 am

Rockman

avatar
Life time member
Life time member
duck wrote:It will never run right. You bought a bike that was designed and built in the northern hemisphere. The fuel molecules will always spin in the wrong direction (like your toilets) resulting in suboptimal performance. lol!
I'll ride it backwards then Smile . That'll fix up those counterspinning molecules.



9Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Sat Mar 11, 2023 12:45 pm

duck

duck
Life time member
Life time member
Rockman wrote:
duck wrote:It will never run right. You bought a bike that was designed and built in the northern hemisphere. The fuel molecules will always spin in the wrong direction (like your toilets) resulting in suboptimal performance. lol!
I'll ride it backwards then Smile . That'll fix up those counterspinning molecules.

Since you guys ride on the wrong side of the road that might help too. cheers


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


10Back to top Go down   K75C project - sort of runs. Empty throttle cable question Mon Apr 10, 2023 2:00 am

Rockman

avatar
Life time member
Life time member
I'm changing the handlebars on my 75C from the S type to a mid height set meant for a R80, so I got hold of a cable for the K75RT.

This is too long (the inner is 114 cm and the outer 102 cm).

What I need to know is the lengths of the standard K75C throttle cable if anyone has one handy they can measure for me.

I'd estimate I need a cable about 96 cm for the outer and about 105 for the outer.



11Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Mon Apr 10, 2023 2:36 am

duck

duck
Life time member
Life time member
There's three 87 and later throttle cables for K75s/K100s.

32731457377-969 mm long:   K75S, K100RS
32731457376-1025 mm long: Plain K75 and K75C, Plain K100
32731457378-1142 mm long: K75RT, K100RT, K100LT

Those are not my measurements. They're from the BMW parts catalog.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


12Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Mon Apr 10, 2023 7:22 pm

Rockman

avatar
Life time member
Life time member
duck wrote:There's three 87 and later throttle cables for K75s/K100s.

32731457377-969 mm long:   K75S, K100RS
32731457376-1025 mm long: Plain K75 and K75C, Plain K100
32731457378-1142 mm long: K75RT, K100RT, K100LT

Those are not my measurements. They're from the BMW parts catalog.
I'm assuming then that these are the overall lengths for the inner cable. If this is the case then the K75C/K75/K100 (...376) should be what I need. Thanks for the info.



13Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Wed Apr 26, 2023 1:21 am

Rockman

avatar
Life time member
Life time member
Ready for rego except for new tyres, which are on order. Starts almost instantly, runs well but geez it blows a lot of smoke when it warms up. I half expect the fire brigade to show up looking for a grass fire. Since I've only run it up and down the back lane a couple of times I'm hopeful that the smog will clear after a good run.

Only thing I did notice was wear on the final drive splines so I'll be looking for a good one of those in due course.

K75C project - sort of runs. 20230410



14Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Wed Apr 26, 2023 1:12 pm

duck

duck
Life time member
Life time member


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


15Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Wed Apr 26, 2023 1:43 pm

charlie99

charlie99
VIP
VIP
Great news Phil......
Smoke  ... dont worry aboutit till you get a couple of hundred ks on it ...should burn off by then eh ?


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


16Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Wed Apr 26, 2023 7:05 pm

Rockman

avatar
Life time member
Life time member
Yes I expect it will clear up with a good run. I half suspect most of the oil is in the muffler because it doesnt smoke much at all when first started, its only after everything has heated up that I get smoke. I suppose I could take the muffler off and run it without. If its the muffler then it should be fairly clear - or maybe I'll just go for a ride next weekend Very Happy



17Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Wed Apr 26, 2023 11:49 pm

Point-Seven-five

Point-Seven-five
Life time member
Life time member
If it helps you feel better, just think of the smoke as mosquito fog and you are doing the neighborhood a service.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


18Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Thu Apr 27, 2023 4:57 am

92KK 84WW Olaf

avatar
Life time member
Life time member
Rockman wrote:Yes I expect it will clear up with a good run. I half suspect most of the oil is in the muffler because it doesnt smoke much at all when first started, its only after everything has heated up that I get smoke. I suppose I could take the muffler off and run it without. If its the muffler then it should be fairly clear - or maybe I'll just go for a ride next weekend Very Happy
Ride it....you will spend more time trying to get the muffler off and back on. It may well be that whoever laid it up put oil in the muffler like we use to do with our old Japanese bikes but they had steel and not stainless steel.


__________________________________________________
1992 K100LT 0193214 Bertha Blue 101,000 miles
1984 K100RT 0022575 Brutus Baja Red 578 bought 36,000 now 89,150 miles
1997 K1100LT 0188024 Wotan Mystic Red 689 58,645 now 106,950 miles Deceased.
1983 K100RS 0011157 Fricka 606 Alaska Blue 29,495 miles Damn K Pox Its a Bat outta Hell Now 58,200 miles.
1996 K1100LT 0233004 Lohengrin Mystic Red 38,000 miles currently 48,061 miles.
1983 K100RS 0004449 Odette R100 colours 58,000 miles. Sprint fairing now 61,190 miles

Past:
1968 Yamaha 80 YG1
1971 Yamaha 125 YAS-1
1968 Honda 125 SS
1970 Honda CD 175
1973 Honda CB500-4
Honda CX 500


19Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Thu Apr 27, 2023 8:41 am

duck

duck
Life time member
Life time member
92KK 84WW Olaf wrote:

Ride it....you will spend more time trying to get the muffler off and back on. It may well be that whoever laid it up put oil in the muffler like we use to do with our old Japanese bikes but they had steel and not stainless steel.

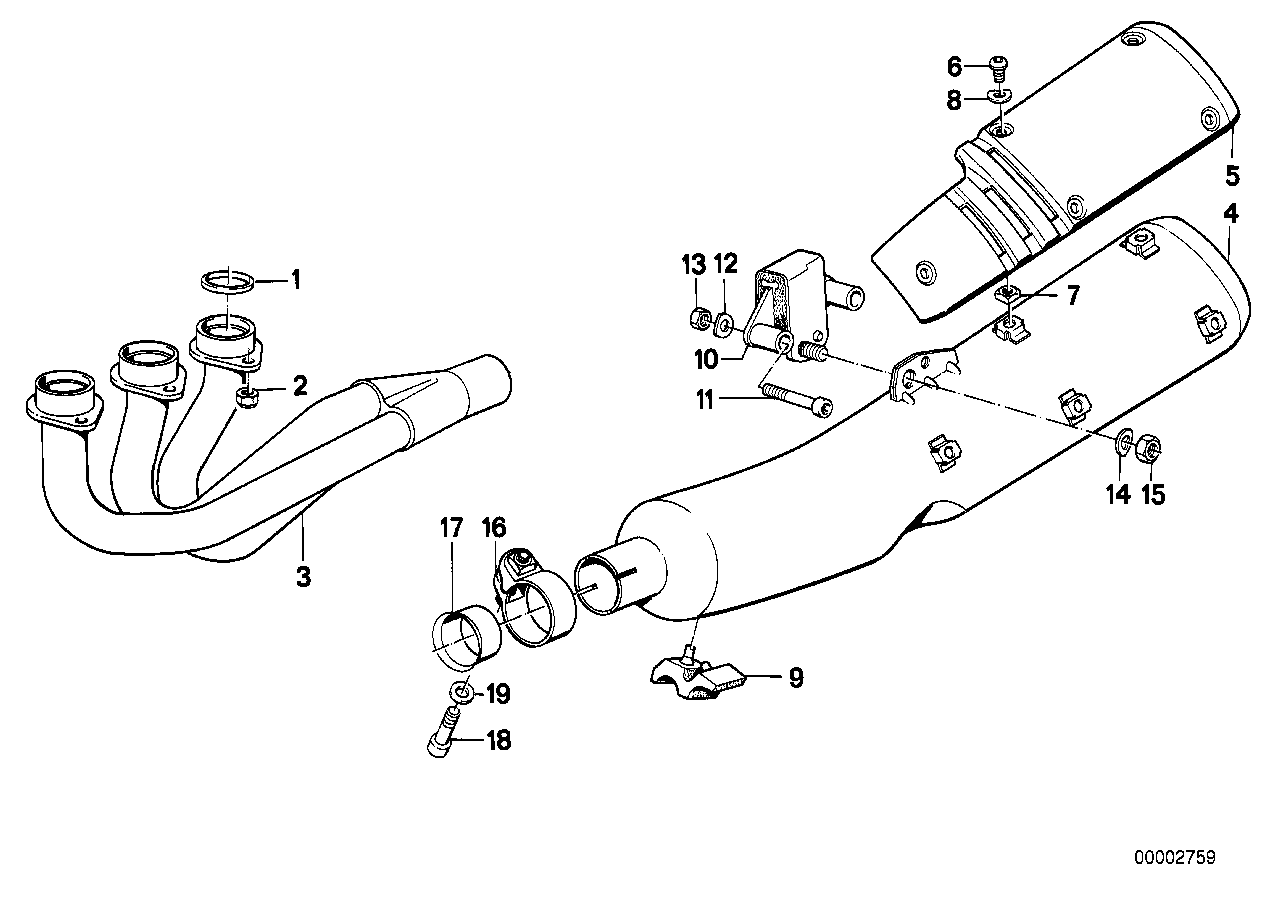

K75 headers aren't like K100 headers with separate pipes going into the exhaust can. K75 headers are welded to a collector and much easier than a K100 to attach to the exhaust can. However, they do have a proprietary one use gasket (17) that usually needs to be replaced.

K75C project - sort of runs. Diag_24n


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


20Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Thu Apr 27, 2023 7:40 pm

Rockman

avatar
Life time member
Life time member
92KK 84WW Olaf wrote:
Rockman wrote:Yes I expect it will clear up with a good run. I half suspect most of the oil is in the muffler because it doesnt smoke much at all when first started, its only after everything has heated up that I get smoke. I suppose I could take the muffler off and run it without. If its the muffler then it should be fairly clear - or maybe I'll just go for a ride next weekend Very Happy
Ride it....you will spend more time trying to get the muffler off and back on. It may well be that whoever laid it up put oil in the muffler like we use to do with our old Japanese bikes but they had steel and not stainless steel.

I doubt that it was "laid up". Just parked in the back of a shed and forgotten more like.

No I'm not going to touch the exhaust, just ride it and see what happens. It starts easily and runs well so I dont think there is anything wrong, and it has moved the mosquitos out of my shed, which is a good thing.



Rockman

avatar
Life time member
Life time member
I finally got to take it for a run on friday after fitting new tyres. There was a big flat spot in the mid range like it was running too rich and bogging down. Maybe the chinese injectors aren't a match for the originals. I did a sort through my collection of injectors (14 in all) and found 3 original Bosch ones that worked. I've yet to take it for another run but "seems" to be better. Smoke haze is clearing.

And a question - I checked the brass screws on the throttle bodies. Two were set at 1 3/4 turns out and one at 1 1/4 turns. What is a good starting point for these? I set all 3 at 1 3/4 turns but haven't balanced them yet.



22Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Sun May 14, 2023 7:48 pm

duck

duck
Life time member
Life time member
I usually put #1 at 1 1/4 to 1 1/2 turns out and then balance the other two to that. Doesn't hurt to take the brass screws all of the way out first to ensure that their tips are clean before balancing.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


23Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Sun May 14, 2023 8:07 pm

Rockman

avatar
Life time member
Life time member
duck wrote:I usually put #1 at 1 1/4 to 1 1/2 turns out and then balance the other two to that. Doesn't hurt to take the brass screws all of the way out first to ensure that their tips are clean before balancing.
Thanks Duck. I'll clean them then set all at 1 1/2 and balance them from there. All after a good run to settle the "new" injectors and everything else in.



24Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Mon May 15, 2023 7:18 pm

charlie99

charlie99
VIP
VIP
Hi Phil,  in addition to cleaning the needles ...  soak a pipe cleaner in carbi clean and push it through the jet into the throttle body  to clean off all the carbon that settles there , there is a lot of spitback that settles in that port

Just a heads up

If the flat spot persists , i could service the afm for you .
Cheers


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


25Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Mon May 15, 2023 7:56 pm

Rockman

avatar
Life time member
Life time member
charlie99 wrote:Hi Phil,  in addition to cleaning the needles ...  soak a pipe cleaner in carbi clean and push it through the jet into the throttle body  to clean off all the carbon that settles there , there is a lot of spitback that settles in that port

Just a heads up

If the flat spot persists , i could service the afm for you .
Cheers
Hi Charlie. A change of injectors back to OEM fixed the flat spot problem. I took it for a run yesterday and it ran clean at all speeds including a couple of bursts to 140 passing traffic so I'm happy with it as is. The headlight fairing is loose and the blinker unit is misbehaving but apart from that all is well. Smoke has gone too.

I did take the needles out. They were actually quite clean so I just gave them a wipe with a green scourer and put them back in set at 1 1/2 turns out. I'll do a proper balance one day.



26Back to top Go down   K75C project - sort of runs. Empty Re: K75C project - sort of runs. Mon May 15, 2023 8:08 pm

charlie99

charlie99
VIP
VIP
great to hear

ride well mate


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


Sponsored content




View previous topic View next topic Back to top  Message [Page 1 of 1]

Permissions in this forum:
You cannot reply to topics in this forum
