1Back to top Go down   My 84 K100 RS restoration Empty My 84 K100 RS restoration on Wed Feb 29, 2012 12:16 am

Halo

Halo
Life time member
Life time member
I always wanted to do a restoration but have never found a bike for such a project, all that changed when I came across an old K100 looking very unloved indeed. I was immediately intruiged by its power train layout and after getting it home I started researching about these K bikes, and couldn't find a bad word about them. Went to the llocal BMW shop and was quickly brought up to speed on the issues I would face so I started researching. It was then I then found Berts restoration link on the web and started pulling her down to look at all the potential problem parts. It was then that I found this forum and was pretty much blown away by the depth of knowledge and support. My mission is to try to restore this bike both mechanically and cosmectically back to its former glory. So with all the usual parts ordered (oil pump shafts, seals all rubber parts etc) from Motobins and no doubt a bag full more required I am at the start of my journey to rebuild this fine old lady.

The old girl when I got her home

My 84 K100 RS restoration Dscf0120

My 84 K100 RS restoration Dscf0121

My 84 K100 RS restoration Dscf0122

My 84 K100 RS restoration Dscf0119

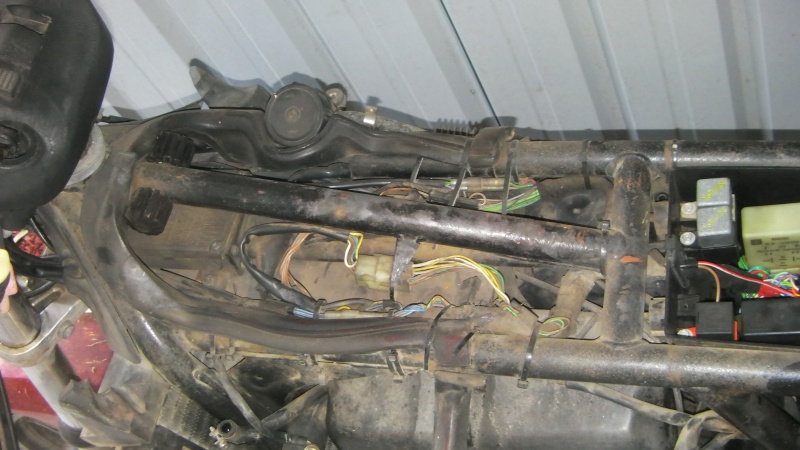

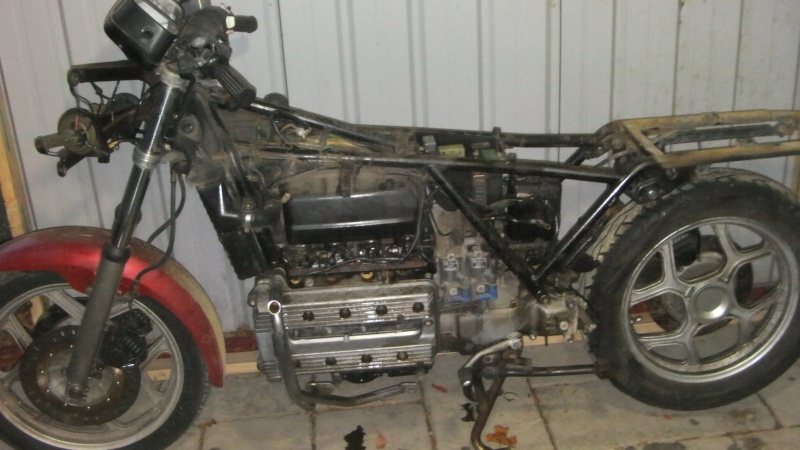

The stripdown

My 84 K100 RS restoration Sany0010

My 84 K100 RS restoration Sany0011

My 84 K100 RS restoration Sany0012

My 84 K100 RS restoration Sany0013

My 84 K100 RS restoration Sany0014

Hmmm output shaft seal or oring issue for sure the clutch showed signs of slipping as well
My 84 K100 RS restoration Sany0110

Next to check the engine insides to see if the rivits on the output shaft are loose as known an issue with the 84 and 85 models due to only six rivets later models had 12
My 84 K100 RS restoration Sany0111

Lucky for me they are ok

Now for the oil pump and known the original oil /water pump was cast iron and one cannot get the original seal kits anymore the bleeder hole had oil around it (buttom of the sump ) so one could assume that the seal had perished after all these years I was hoping that someone had done the pump update already though.

My 84 K100 RS restoration Sany0112

My 84 K100 RS restoration Sany0113

Unfortunetly for me it was the original pump inners seen by the cast impeller and the nut on the shaft not a bolt in the shaft. Had to order the shaft pressed impeller and the new ceramic seal kit from Motobins very reasonable pricing from them the prices locally were criminal.

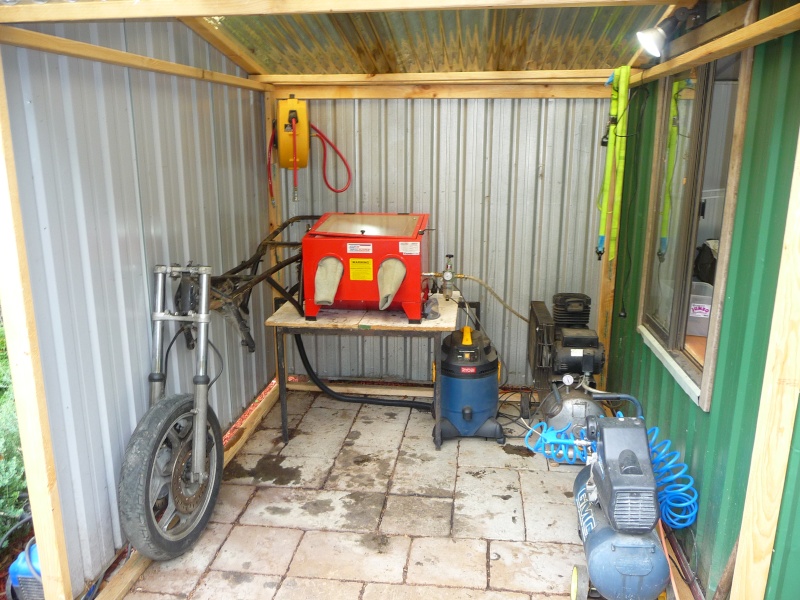

Now the healing begins cheers because most of the bits are very weather beaten I set myself up with the following

My 84 K100 RS restoration P1030710

Each part requires restoration I want to leave all parts original looking so I practiced with the sand blaster and good old elbow grease (Brass wire brush and mild detergent.

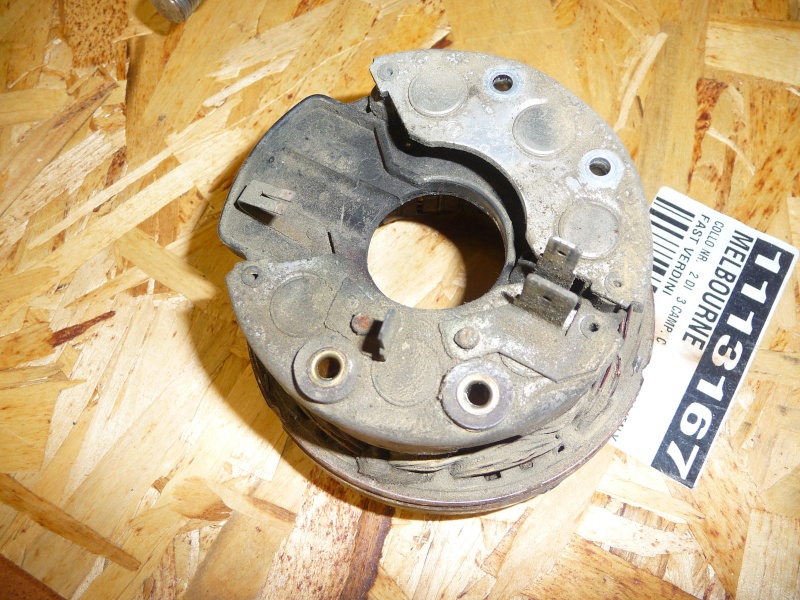

Shown here is the alternator

Before

My 84 K100 RS restoration Dscf0123

My 84 K100 RS restoration P1030712

My 84 K100 RS restoration P1030713

After

My 84 K100 RS restoration P1030711

My 84 K100 RS restoration P1030714

My 84 K100 RS restoration P1030715



Result looks ok however I have ordered a ultrasonic cleaner like OG and I will see what that does for me OG has had some spectucalur results.

I will try VHT clear enamel on all parts at some stage in the near future has anyone had success with it on aluminuim parts?

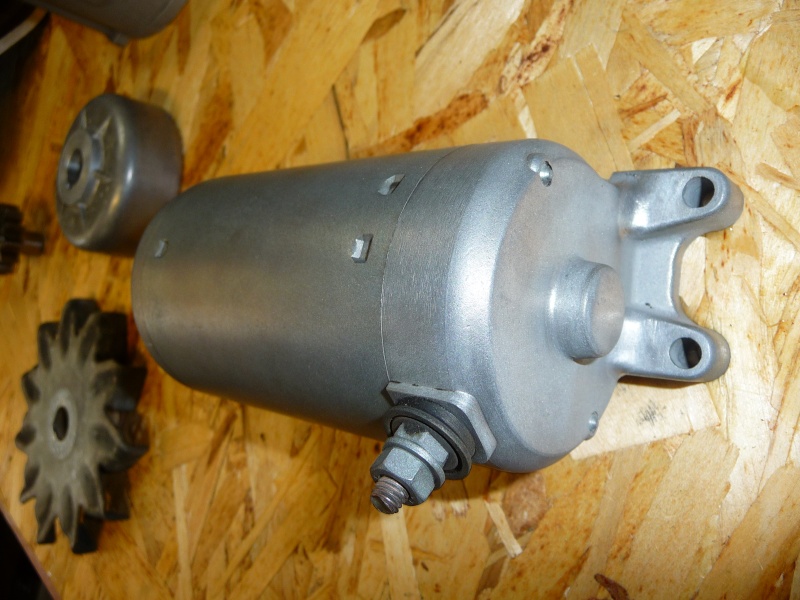

Also pulled apart the starter motor and regreased the bearing and cleaned up

My 84 K100 RS restoration P1030716

The sandblaster can be as bad as it is good no one want abrasives in the machinical parts I have been experimenting with mould release first then silicon below is a injector before and after

My 84 K100 RS restoration Sany0016



Last edited by Halo_player on Sun Mar 18, 2012 8:11 am; edited 20 times in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


2Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 12:33 am

zonenfeile

zonenfeile
Gold member
Gold member
My 84 K100 RS restoration 112350
Go on - and don´t quail when times come harder

1st: RtfM for download here


__________________________________________________
ex K1100/2

K- Wiki - or rtfm first

Regards from Hamburg

Olaf


3Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 2:11 am

blaKey

blaKey
Life time member
Life time member
Good work and great photos Halo.

No doubt there will be a few on the forum following this closely.


__________________________________________________
Neil
K100RS 1986 RED!

Dress for the ride and the potential slide.


4Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 2:25 am

charlie99

charlie99
VIP
VIP
+1 blakey



great work halo ...sniffle reminds me of bringing home a corossion encrusted piece of aluminium crap as well...but with lots of potential ...

good onya mate! cant wait for more


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


5Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 2:32 am

sidecar paul

sidecar paul
Life time member
Life time member
Good stuff Halo,
They sometimes look pretty rough on the outside, but usually under the gunge they are remarkably sound.
I can see another concours job coming here.
Cheers,
Paul.


__________________________________________________
'84 K100RS (0014643) (owned since '85), 86 K100RS (0018891) with Martello sidecar (built as an outfit in '88),
'51 Vincent (since '67),'72 Montesa Cota (from new), '87 Honda RS125R NF4 (bought 2015)
....No CARS never ever!


6Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 2:33 am

CanberraDave

CanberraDave
Gold member
Gold member
Looking good mate. Wish I had the patience but I just want to ride!!!!!


__________________________________________________
Canberra Dave
00 R1100RT
6/89 K100RT (RIP)
VIN # 0097704

What happens if you get scared half to death twice?



7Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 4:26 am

88

88
Life time member
Life time member
Wow! Impressive Halo. Slowly, Slowly catchy monkey! Great detail in the pics for those of us less gifted. She'll be super when all brought up to that standard.

88KE


__________________________________________________
My 84 K100 RS restoration Ir-log1188....May contain nuts!My 84 K100 RS restoration Ir-log11

"The world is a book and those who do not travel read only one page." - St. Augustine from 1600 years ago & still true!

Bike: K100LT 1988. 0172363. AKA the Bullion Brick! Mods: k1100 screen and stands.
K1: 1990. 6374189. Custom Stealth Black paint.


8Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 4:40 am

blaKey

blaKey
Life time member
Life time member


__________________________________________________
Neil
K100RS 1986 RED!

Dress for the ride and the potential slide.


9Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 4:48 am

Halo

Halo
Life time member
Life time member
Blakey thanks for the link looks really interesting shall give it a good read tomorrow And comment


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


10Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 5:02 am

blaKey

blaKey
Life time member
Life time member
Be careful with that stuff...apparently it goes e v e r y w h e r e!

But, it's biodegradable, so if you do it outside, the next shower will wash it away.


__________________________________________________
Neil
K100RS 1986 RED!

Dress for the ride and the potential slide.


11Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 9:11 am

Oldgoat

Oldgoat
Life time member
Life time member
Outstanding pics mate! Keep after it and I'm looking forward to this one. Cool I've used the VHT before on calipers and what not and its decent stuff at a good price. Oh, and can I put in a request for documenting that oil/water pump rebuild as it was one that bit me in the a**!

Thanks,
OG



12Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 11:53 am

Halo

Halo
Life time member
Life time member
Thanks OG the work done up to now was before I started this post / forum so posts so far are more of just show and tell thing from now on I will try to document the main subsections. OG I really appreciate your comments as your resto just blows me away and is something I will try to aspire too.


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


13Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 2:57 pm

col

col
Life time member
Life time member
top job halo
i thought about doing something similar when i got my bike but as soon as it started plans changed register now ride it do up later
blakey
like the soda blasting machine will have to give that one a try


__________________________________________________
1991 k100lt "the enterprise"


14Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Wed Feb 29, 2012 10:39 pm

Albyalbatross1

Albyalbatross1
Life time member
Life time member
@blakey wrote:Be careful with that stuff...apparently it goes e v e r y w h e r e!

But, it's biodegradable, so if you do it outside, the next shower will wash it away.

Blakey is very right!!! for those who know of my backyard..It was all white!! And wear a respirator!! like breathing lemonade!!

Excellent work there halo.



15Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Thu Mar 01, 2012 12:00 am

Halo

Halo
Life time member
Life time member
Doesn't look abrasive enough for the engine (shes really weathered) I have machined up PVC plugs for the appropriate holes so the abrasive al oxide doesn't get in. I brought a gravity feed gun and will make a booth up to recollect the media I want to use it for the wheels and frame as well.



Last edited by halo_player on Thu Mar 01, 2012 2:04 am; edited 2 times in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


16Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Thu Mar 01, 2012 12:35 am

Halo

Halo
Life time member
Life time member
Blakey & Alby thinking of taking out the aluminium oxide in the sandblaster cabinet and trying the soda on the throttle bodies inside and out your thoughs guys Question


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


17Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Thu Mar 01, 2012 2:09 am

Albyalbatross1

Albyalbatross1
Life time member
Life time member
halo.. I found after I tried it, two things. 1. I needed to get the proper soda medium. 2. Needed at least 5 hp compressor. I ended up using the brass wire wheels.



18Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Thu Mar 01, 2012 2:14 am

blaKey

blaKey
Life time member
Life time member
Alby's right, you do need a bit of force behind it.


__________________________________________________
Neil
K100RS 1986 RED!

Dress for the ride and the potential slide.


19Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Thu Mar 01, 2012 2:49 am

Halo

Halo
Life time member
Life time member
Lucky for me a good friend of mine has lent me his large air compressor for awhile mine is just a toy so that part is covered. I have tried the brass wire brush wheel and found it abit to harsh and doesn't give me that wow factor, what is the correct medium Alby and where can I get my hands on some.
Thanks
Halo


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


20Back to top Go down   My 84 K100 RS restoration Empty First lot of Motobins parts arrived on Fri Mar 02, 2012 12:51 am

Halo

Halo
Life time member
Life time member
Can start to get cracking now the first shipment of parts has come in Very Happy

My 84 K100 RS restoration P1030717



Last edited by halo_player on Fri Mar 02, 2012 2:47 am; edited 2 times in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


21Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 2:05 am

charlie99

charlie99
VIP
VIP
ahh...nice ....i see the water pump kit and lots of goodies


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


22Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 2:28 am

Albyalbatross1

Albyalbatross1
Life time member
Life time member
halo, One of our local bike mechs uses a commercial soda medium. It is like a fine rock salt. It explodes on contact and the fine particles strip away the gunk. Just do a search for blasting supplies. there are many! I think hhis was in 20kg bag. i will ask him tomorrow morning if he is in town.



Last edited by Albyalbatross1 on Fri Mar 02, 2012 2:28 am; edited 1 time in total (Reason for editing : .)



23Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 2:42 am

Halo

Halo
Life time member
Life time member
Thanks Alby it's my next thing to research and try


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


24Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 4:07 pm

robmack

robmack
Life time member
Life time member
@Albyalbatross1 wrote:halo.. I found after I tried it, two things. 1. I needed to get the proper soda medium. 2. Needed at least 5 hp compressor. I ended up using the brass wire wheels.
I was going to mention that the compressor needs some beef behind it. I saw that the compressor halo had looked borderline...might work, might not for soda blasting. I've a puny 5 gallon unit and it won't work at all.


__________________________________________________
Robert
1987 K75 @k75retro.blogspot.ca
http://k75retro.blogspot.ca/


25Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 5:16 pm

Halo

Halo
Life time member
Life time member
Hi robmack got two compressors there in the picture the front one cheap the second one there (harder to see) is a $1000 jobby
Cheers Jason


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


26Back to top Go down   My 84 K100 RS restoration Empty Low cost Soda blaster attempt on Fri Mar 02, 2012 5:49 pm

Halo

Halo
Life time member
Life time member
Guys,

Went and got the following cheap parts today

Gloves $5 Tub $20 Soda $15 Gun $29 Vac $29 as I dont want to change the al oxide in the propper sandblaster cabinet. This one will be at an attempt to soda blast the throttle bodies.

My 84 K100 RS restoration P1030718


My 84 K100 RS restoration P1030810


Used the Old K100 air filter & will rig up the Vac tom & try the throttle bodies

My 84 K100 RS restoration P1030726



Last edited by halo_player on Sat Mar 03, 2012 9:02 pm; edited 3 times in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


27Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Fri Mar 02, 2012 6:41 pm

RicK G

RicK G
VIP
VIP
Looks like you mean business Jason. One thing I found out a while ago is with those sand blaster guns if the tube that goes to the tub is a thin walled rubber get a plastic reinforced tube as the rubber one sometimes collapses wiyh the vacuum from the venturi and stops the flow of medium.


__________________________________________________
"Every normal man must be tempted, at times, to spit upon his hands, hoist the black flag, and begin slitting throats."  from Mencken's 1919 Prejudices

Bikes 1993 K1100 LT, 1998 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 for now


28Back to top Go down   My 84 K100 RS restoration Empty Soda blaster a rainy day project on Fri Mar 02, 2012 9:33 pm

Halo

Halo
Life time member
Life time member
Thanks for the advice Kfreak yes I checked the tube looks pretty thick
Almost finished the Sodablaster it turned out fairly large I had some perspex laying around and used it for the top
My 84 K100 RS restoration P1030724




__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


29Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 12:07 pm

K-BIKE

avatar
Life time member
Life time member
The huge benefit of soda blasting is that one can wash the part in hot water and hey presto it is all gone whereas with sand or grit that will not dissolve and is there for ever. The trick is to get the amount of air delivery at pressure and the two compressors could probably be paralleled to give extra flow.
Regards,
K-BIKE



30Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 9:13 pm

Halo

Halo
Life time member
Life time member
Had a chance to try the sodagun on the throttle bodies

Before

My 84 K100 RS restoration P1030811

My 84 K100 RS restoration P1030812

After

My 84 K100 RS restoration P1030813

My 84 K100 RS restoration P1030814


My 84 K100 RS restoration P1030815
Really different finish to the sandblaster !!!!! will put it through 1 more time.

THANKS FOR YOUR INPUT BLAKEY & ALBY & K FREAK for this sodablaster I wasn't going to try one but now I have another great tool at my disposal for my resto.

I have been researching Ultrasonic cleaners and I will buy a ultrasonic transducer and design my own frequency and drive circuit. They say one centered on 40khz that sweeps 12khz each side is better. Then I can use a lager container, I have all the parts here but the transducer that is about $70 at Jaycar.


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


31Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 9:58 pm

charlie99

charlie99
VIP
VIP
yes you have to find the resonant frequency of the transducer for maximum effect and efficency ...of corse as the transducer comes into contact with things ...(ie mounting with epoxy ) this will change quite a lot, so yes i would agree make it adjustable for the centre frequency

good job on the tbs....yay cheers



32Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 10:03 pm

Halo

Halo
Life time member
Life time member
Thanks charlie do you think the USC will do a better finish?


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


33Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 10:20 pm

charlie99

charlie99
VIP
VIP
I see the ultrasonic cleaner as being best benefit in small holes/ports/chambers where crud has built up and there is no way for the soda to get in there ...same for threaded sections into body of device etc ,

i would imagine the cleaning fluid used in the usc would be dependant on the job also ..

maybe concider them both as complementary to each other ...if that makes sence (eg the usc would clean out the air bypass ports quit well through the tbs but best left for last after all the big stuff has been blasted off)


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


34Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 10:29 pm

Halo

Halo
Life time member
Life time member
Yes agreed thanks Charlie


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


35Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 11:00 pm

Albyalbatross1

Albyalbatross1
Life time member
Life time member
have been researching Ultrasonic
cleaners and I will buy a ultrasonic transducer and design my own
frequency and drive circuit. They say one centered on 40khz that sweeps
12khz each side is better. Then I can use a lager container, I have all
the parts here but the transducer that is about $70 at Jaycar.
_________________

halo..Those kit units are often on backorder!!! They will not be powerfull enough. They are great for small jobs. The energy is dissapated in the cleaning solution.HERE is some info for you.

Yes!! great job!!



Last edited by Albyalbatross1 on Sat Mar 03, 2012 11:31 pm; edited 1 time in total (Reason for editing : .)



36Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 11:03 pm

MT350Explorer

MT350Explorer
Life time member
Life time member
Great article Halo, I'm hooked! Look forward to reading more as things progress.
Best
Dave


__________________________________________________
1991 K100 RS 16 valve


37Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 11:37 pm

Halo

Halo
Life time member
Life time member
Yer thats Dave much appreciated

Cheers Jason


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


38Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 11:43 pm

Halo

Halo
Life time member
Life time member
Alby wow you certainly went the whole hog that's a huge powerful unit. Unfortunetly out of my price range at present since I do design engineering I have quite a few sweeping frequency generators and complementary h bridge MOSFET driver supplies capable of high output currents hanging around you are right through the 50watt transducer from jaycar is too small i will have a word to our
Asian suppliers to see if they have larger ones pretty much I will try to find the biggest trunsducer for my buck and design a circuit for it.



Last edited by halo_player on Sat Mar 03, 2012 11:58 pm; edited 1 time in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


39Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sat Mar 03, 2012 11:53 pm

RicK G

RicK G
VIP
VIP
halo_player wrote:Alby wow went the whole hog thats great. Unfortunetly out of my price range at present since I do design engineering I have quite a few sweeping frequency generators and amplifier supplies capable of high output currents I will try to find the biggest trunsducer for my buck and design a circuit for it.
Seeing as I am the original skinflint I am watching closely.


__________________________________________________
"Every normal man must be tempted, at times, to spit upon his hands, hoist the black flag, and begin slitting throats."  from Mencken's 1919 Prejudices

Bikes 1993 K1100 LT, 1998 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 for now


40Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 12:05 am

charlie99

charlie99
VIP
VIP
i think the secret is not to buy the biggest but have a look at watts per dollar, amongst the lower power units i mean 5x 30 watt units a 20 each could be cheeper than 2 x 80 or 100 watt .....if you get my drift


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


41Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 12:19 am

Halo

Halo
Life time member
Life time member
Yes agreed like the soda blaster I think I can make a low cost USC that gives you bang for your buck but Albys unit is sure sweeeeet


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


42Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 1:39 am

Albyalbatross1

Albyalbatross1
Life time member
Life time member
You have acess to frequency generators??!!!!! Twisted Evil I may have a small request at some stage in near future. ill be needing something to punch out 10 -25 khz @ 140 db. I will be looking foward to your designs. A throw in type perhaps???



43Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 1:48 am

charlie99

charlie99
VIP
VIP
140 db out of what alby.... thats a pretty big number ....maybe one or many of those motorola piezios ...they have been used for bat scarers and stuff for years ...you would have to find the 100 watt versions though as the domestic versions 50 watt tend to blow up at those output levels. pretty flat responce from about 7 k up to 50k from memory



Last edited by charlie99 on Sun Mar 04, 2012 1:54 am; edited 1 time in total


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


44Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 1:52 am

blaKey

blaKey
Life time member
Life time member
"You have acess to frequency generators??!!!!! Twisted Evil I may have a small request..."

Dangerous words coming from the mouth of Alby! Be afraid. Be very afraid!


__________________________________________________
Neil
K100RS 1986 RED!

Dress for the ride and the potential slide.


45Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 1:56 am

charlie99

charlie99
VIP
VIP
@blakey wrote:"You have acess to frequency generators??!!!!! Twisted Evil I may have a small request..."

Dangerous words coming from the mouth of Alby! Be afraid. Be very afraid!

aye blakey !!!!

ifn we get involved ...im making him sign a waver till we hi-tail it back to brissy ...



46Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 2:52 am

Halo

Halo
Life time member
Life time member
You guys, the thing is I wanted to do this project as it was a break from my electronic designs in my day job but it's all good and I will help out where I can. If we can keep it to K100's it would be a bonus though.
I'm still buzzing over what a good job the soda blaster does the finish is good and I don't have to stress about the foreign matter doing damage think I will try it on the engine block as I have the parts now and need to start to put her back together do you think I need to take the head off to have a look it's got 101 thousand k's on her Question Question



Last edited by halo_player on Sun Mar 04, 2012 3:09 am; edited 1 time in total


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


47Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 3:07 am

charlie99

charlie99
VIP
VIP
My 84 K100 RS restoration 112350


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%OMy 84 K100 RS restoration Au-log10

"redframe" rs "bitsa"  with many contributions from the k100 community ,,with many thanks


48Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 4:52 am

RicK G

RicK G
VIP
VIP
halo_player wrote:You guys, the thing is I wanted to do this project as it was a break from my electronic designs in my day job but it's all good and I will help out where I can. If we can keep it to K100's it would be a bonus though.
I'm still buzzing over what a good job the soda blaster does the finish is good and I don't have to stress about the foreign matter doing damage think I will try it on the engine block as I have the parts now and need to start to put her back together do you think I need to take the head off to have a look it's got 101 thousand k's on her Question Question
I would leave well alone. There are many bricks around that have done 3 times that distance and never been touched. Maybe just retorque it when the engine is still warm but do one bolt at a time. Like back it off pull it out and apply some antisieze on the thread and under the bolt head and then pull it up again.


__________________________________________________
"Every normal man must be tempted, at times, to spit upon his hands, hoist the black flag, and begin slitting throats."  from Mencken's 1919 Prejudices

Bikes 1993 K1100 LT, 1998 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 for now


49Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 12:53 pm

Halo

Halo
Life time member
Life time member
Thanks K freak, thats at least one job I don't have to do then.Very Happy

Jason


__________________________________________________
84 K100RS 0014803
93 FZR1000 EXUP


50Back to top Go down   My 84 K100 RS restoration Empty Re: My 84 K100 RS restoration on Sun Mar 04, 2012 1:47 pm

Crazy Frog

Crazy Frog
admin
admin
Jason,

I think you and Oldgoat are trying to make these bikes better than they were new.
The result looks very impressive.

CF


__________________________________________________
My 84 K100 RS restoration Frog15My 84 K100 RS restoration Logo2101986 k75, 1985 K100rt, 1985 K100rt/EML sidecar.


View previous topic View next topic Back to top  Message [Page 1 of 21]

Go to page : 1, 2, 3 ... 11 ... 21  Next

Permissions in this forum:
You cannot reply to topics in this forum
