1Back to top Go down    Mysterious Hole in Crankcase on Mon Mar 04, 2013 6:19 am

RT

avatar
Life time member
Life time member

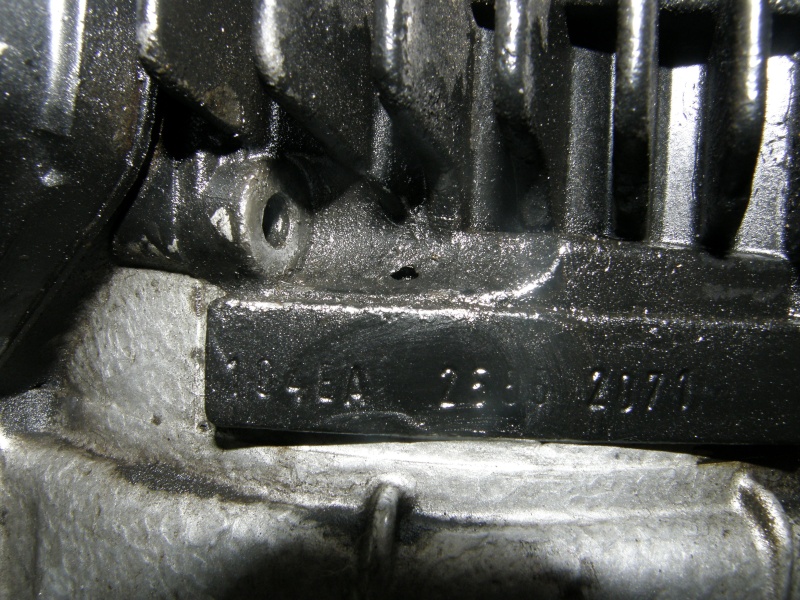

Well, just as things are running smoothly on the RT, for some reason I was on my hands and knees checking the engine number and spotted this.

Turn your computer to the right, this is on the right hand side near the junction of gear box and crankcase.

My simple question is WTF? is going on. Anyone seen this before. Needless to say, my slight oil loss my have just been solved. How the hell do I fix this? chewing gum, gasket goo?
Thanks in expectation.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


2Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 6:29 am

rosskko

avatar
VIP
VIP
What makes you think the hole is mysterious?

I can see it plain as day. It is a hole. Nothing mysterious about it.
Unless a wabbit comes out.

No snake eh. Gonna hafta sack that new mail delivery boy.


__________________________________________________
1986 K100RT VIN 0093801K100RT with summer fairing for a northern visitor

Basic/2 6308802K100CJ05/1988

K1100RS 0194321


3Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 6:32 am

RicK G

avatar
VIP
VIP
I will have a look on the engines I have here and get back but I have a feeling that it is ok and quite possibly just a bolt hole that has been drilled just a touch too far before it was tapped for the thread. I wouldn't be overly concerned about it.


__________________________________________________
If everything seems under control then you aint goin fast enough:- Mario Andretti
Bikes 1986 K100RT, 1993 K1100 LT, 1994 K1100 LT, 1993 K75 RT, 1996 K75RT, 1986 K75 GS, 1979 Z1300 Kawasaki X 2 & 1976 SR 500 Yamaha for now


4Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 6:42 am

charlie99

avatar
VIP
VIP
looks like a sump cover bolt lost ......shouldnt cause a big issue ,,unless you have a lot of oil around that junction as the sealant would probably keep it free from leaks ,,,,,

but maybe would be wise to check the etk for the correct size-length to replace it ????

just an opinion


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


5Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 7:09 am

blaKey

avatar
Life time member
Life time member
Charlie...we're looking at the tiny hole to the right of the bolt hole... Shocked


__________________________________________________
Neil
K100RS 1986 RED!
K100RT 1987 (now nekkid with red bits)

Remember Rule No. 6


6Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 7:14 am

klompy the grey brick

avatar
VIP
VIP
fill it up with metalset...or DEVCON...its just a minor thing ....I do remember having an electrical problem once when a conrod took out my alternator....this is not a problem in comparison.What a Face


__________________________________________________
KKlompy
1984 K100RS Silver VIN 0019026 Mitt eine Staintune Zorst.
1997 K1100LT Dark Grey VIN WB1052600W0237453.

Chassis number0019026
Vehicle code0503
SeriesK589
ModelK 100 RS 83 (0502 ( 0503 )
Body typeK 100 RS 83 (0502
Catalog modelECE
Production date1984 / 07
Engine0513)






7Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 7:16 am

Guest


Guest
You had a K100 that threw a rod??



8Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 7:45 am

klompy the grey brick

avatar
VIP
VIP
nope it was a flimsy 180B Datsun....but never let truth get in the way of a good story....


__________________________________________________
KKlompy
1984 K100RS Silver VIN 0019026 Mitt eine Staintune Zorst.
1997 K1100LT Dark Grey VIN WB1052600W0237453.

Chassis number0019026
Vehicle code0503
SeriesK589
ModelK 100 RS 83 (0502 ( 0503 )
Body typeK 100 RS 83 (0502
Catalog modelECE
Production date1984 / 07
Engine0513)






9Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 7:56 am

charlie99

avatar
VIP
VIP
k blakey i get what you mean

looks like a slight bubble in the casting to me ......sounds like an acetone to clean it up and a bit of liquid metal to make it apear to be ...erm ...solid ...

but the missing bolt above is of some concern

heres a blurry pic of how mine is ......its dark outside ...and wet





looks about 6mm x 20 - 25mm to me .....if this was missing there could be a little weep out of there ...maybe ?

but looks as though you crank cover seal rubbers has started to loose the seal bob

maybe replace that seal ./....and the rubbers for the retaining bolts ( they loose presure over the years ) or run some "good sealant " over the crankcase seal ...wait for it to go off then put the crank cover back on ???

just some thoughts after my leak events recently



Last edited by charlie99 on Mon Mar 04, 2013 8:42 am; edited 2 times in total


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


10Back to top Go down    Re: Mysterious Hole in Crankcase on Mon Mar 04, 2013 8:13 am

klompy the grey brick

avatar
VIP
VIP
looks like an allen/hex screw ...wack one in see if it takes up..could be that hole was caused through rough handling removing or fitting that bolt.


__________________________________________________
KKlompy
1984 K100RS Silver VIN 0019026 Mitt eine Staintune Zorst.
1997 K1100LT Dark Grey VIN WB1052600W0237453.

Chassis number0019026
Vehicle code0503
SeriesK589
ModelK 100 RS 83 (0502 ( 0503 )
Body typeK 100 RS 83 (0502
Catalog modelECE
Production date1984 / 07
Engine0513)






11Back to top Go down    Mysterious Hole in Crankcase on Mon Mar 04, 2013 5:05 pm

RT

avatar
Life time member
Life time member
Tks everyone, there is a small amount of oil there, maybe Charlie is right, coming from the crankcase seal. Just another job.
To be honest I thought that bolt hole was where the lower fairing bolt was located, I think I have something that will go in there.

Just goes to show you should get a magnifying glass out when you are bored and give it a once over.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


12Back to top Go down    Mysterious Hole in Crankcase on Mon Mar 04, 2013 5:06 pm

RT

avatar
Life time member
Life time member
Tks everyone, there is a small amount of oil there, maybe Charlie is right, coming from the crankcase seal. Just another job.
To be honest I thought that bolt hole was where the lower fairing bolt was located, I think I have something that will go in there.

Just goes to show you should get a magnifying glass out when you are bored and give it a once over.
When I replace that seal, do I have to use sealant goo or does the seal seal without sealant.
Whoops dubbled up.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


13Back to top Go down    Re: Mysterious Hole in Crankcase on Tue Mar 05, 2013 4:20 am

charlie99

avatar
VIP
VIP
bob if you are fixing that seal just remember the rubber becomes hard over time and doesnt seal as well as it did when it was young .

sure you will be able to refit it and it will service well for a few more years ...maybe ..or put some silicon sealant around the whole lot to take up the low presures ..( which i did )

but the bolts that you undo to get the cover off have a rubber gromit for want of a better word ...around the head of those bolts ...it compresses over time ...and they are the cause for some of my leak issues when i did my camchain recently ,,,they just dont put enough presure on the outer seals any more

you might find that getting some new ones will help dramatically they dont cost a lot but there are many if you take the head cover into account as well ......

what did we count blakey ? 20 something of them for both sides *22 total *

cheers mate


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O


14Back to top Go down    Re: Mysterious Hole in Crankcase on Tue Mar 05, 2013 7:09 am

blaKey

avatar
Life time member
Life time member
Yeah, something like that.

I remember you found a few more than what I originally counted.


__________________________________________________
Neil
K100RS 1986 RED!
K100RT 1987 (now nekkid with red bits)

Remember Rule No. 6


15Back to top Go down    Mysterious Hole in Crankcase on Wed Mar 06, 2013 7:45 pm

RT

avatar
Life time member
Life time member
Ok, looking for those "grommet" things of which you speak. Can't see them listed in Munich Motorcycle's site, how did you get a hold of them Charlie? is there a special name for them. ( I just felt a cold shiver as Inge let out a scream of exasperation).
The crankcase gasket seems cheap enough from them and will get here Monday if I can order it all. (means I will have it fixed by Easter if I,m lucky.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


16Back to top Go down    Re: Mysterious Hole in Crankcase on Wed Mar 06, 2013 8:13 pm

japuentes

avatar
Life time member
Life time member
Hi There, tag 8 on the drawing, part number & name 11 14 1 460 934 BUSH at maxbmw website
Best regards
JAP


__________________________________________________
1988 K100RS SE/ABS


17Back to top Go down    Mysterious Hole in Crankcase on Wed Mar 06, 2013 10:37 pm

RT

avatar
Life time member
Life time member
Thanks JAP, just what I was looking for.
Now to order them.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


18Back to top Go down    Re: Mysterious Hole in Crankcase on Thu Mar 07, 2013 7:16 am

blaKey

avatar
Life time member
Life time member
Hey RT...

Part number 1160934K ($1.20) from Munich Motorcycles.


__________________________________________________
Neil
K100RS 1986 RED!
K100RT 1987 (now nekkid with red bits)

Remember Rule No. 6


19Back to top Go down    Mysterious Hole in Crankcase on Thu Mar 07, 2013 5:46 pm

RT

avatar
Life time member
Life time member
Again I am indebted to the superior search powers of the forum.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


20Back to top Go down    Re: Mysterious Hole in Crankcase on Fri Mar 08, 2013 1:13 am

ainsjac

avatar
Life time member
Life time member
RT, are you referring to Blakey?


__________________________________________________
AINSJAC
1983 K100basic vin 0003960 colour red
1987 K100RT vin 0094685 colour, orange peel, sorry, pearl


21Back to top Go down    Re: Mysterious Hole in Crankcase on Fri Mar 08, 2013 5:38 am

blaKey

avatar
Life time member
Life time member
No. Not just me ainsjac. RT would be giving a shout-out to everyone who helps.


__________________________________________________
Neil
K100RS 1986 RED!
K100RT 1987 (now nekkid with red bits)

Remember Rule No. 6


22Back to top Go down    Re: Mysterious Hole in Crankcase on Fri Mar 08, 2013 4:46 pm

ainsjac

avatar
Life time member
Life time member
True Blakey....but it concerns me that you know part numbers. Are you taking pointers from Inge?


__________________________________________________
AINSJAC
1983 K100basic vin 0003960 colour red
1987 K100RT vin 0094685 colour, orange peel, sorry, pearl


23Back to top Go down    Mysterious Hole in Crankcase on Fri Mar 08, 2013 6:04 pm

RT

avatar
Life time member
Life time member
I was impressed that Blakey came up with the numbers, but it is a general thank you.
There are a few of us who live a bit isolated from the rest, and this forum makes it easier to control the destructive urges that come after fiddling for hours getting no where.


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


24Back to top Go down    I agree with Rick G on Fri Mar 08, 2013 11:22 pm

ibjman

avatar
Life time member
Life time member
I'm sure this is not an issue.....it was simply one of the bolt holes from the rear housing adaptor that was drilled a shade to far at original mfg. see my pics. the screwdriver shows that mine was also drilled almost through in that area. since the other side of this "hole" is into the rear threaded bolt hole area, it does no harm (unless you are worried about road salts & water getting in through that hole and rusting up the rear facing bolt threads. In that case, just block it with a dab of some sealer. No worries, nothing will be leaking outward from that hole.
Here's a pic of an old spare I have (1985 K100RT). You can have it for free if you want to pay to ship it from the USA.




25Back to top Go down    Re: Mysterious Hole in Crankcase on Sat Mar 09, 2013 4:14 am

blaKey

avatar
Life time member
Life time member
Good photos ibjman.


__________________________________________________
Neil
K100RS 1986 RED!
K100RT 1987 (now nekkid with red bits)

Remember Rule No. 6


26Back to top Go down    We like this little point & shoot camera on Sat Mar 09, 2013 7:25 am

ibjman

avatar
Life time member
Life time member
Thanks,
We like this little p&s camera, fits nicely in the motorcycle jacket pocket and has a small view screen on the front for taking our own photo!......LOL
Has a pretty good macro setting that I used ofr these pics also.
see it here: http://www.samsung.com/us/photography/digital-cameras/EC-TL220ZBPRUS
(A little pricey, tho)



27Back to top Go down    Re: Mysterious Hole in Crankcase on Sat Mar 09, 2013 3:58 pm

sidecar paul

avatar
Life time member
Life time member
Good spot, ibjman, it's nice to find a logical solution.

Paul.


__________________________________________________
'84 K100RS (0014643) (owned since '85), 86 K100RS (0018891) with Martello sidecar (built as an outfit in '88),
'51 Vincent (since '67),'72 Montesa Cota (from new), '87 Honda RS125R NF4 (bought 2015)
....No CARS never ever!


28Back to top Go down    Thanks, But on Sat Mar 09, 2013 4:43 pm

ibjman

avatar
Life time member
Life time member
It was actually Rick G in the posting several above who offered up the solution!!!
I just chimed in with the pics because I had a similar part laying around to refer to.



29Back to top Go down    Re: Mysterious Hole in Crankcase on Sat Mar 09, 2013 5:21 pm

sidecar paul

avatar
Life time member
Life time member
Opps, sorry Rick, I read your post but it didn't register until I saw the pics.Embarassed

Paul.


__________________________________________________
'84 K100RS (0014643) (owned since '85), 86 K100RS (0018891) with Martello sidecar (built as an outfit in '88),
'51 Vincent (since '67),'72 Montesa Cota (from new), '87 Honda RS125R NF4 (bought 2015)
....No CARS never ever!


30Back to top Go down    Mysterious Hole in Crankcase on Sat Mar 09, 2013 5:36 pm

RT

avatar
Life time member
Life time member
Thanks ibjman, that puts me at ease. I'll pass on the engine, I've got one in a shed doing nothing as well.
RT


__________________________________________________
Suzuki V Strom 650DL 2011. Gasp, chain driven.


View previous topic View next topic Back to top  Message [Page 1 of 1]

Permissions in this forum:
You cannot reply to topics in this forum
