1Back to top Go down   Rear Wheel Question Empty Rear Wheel Question Mon Nov 06, 2017 5:49 pm

yamaguzzi

yamaguzzi
Life time member
Life time member

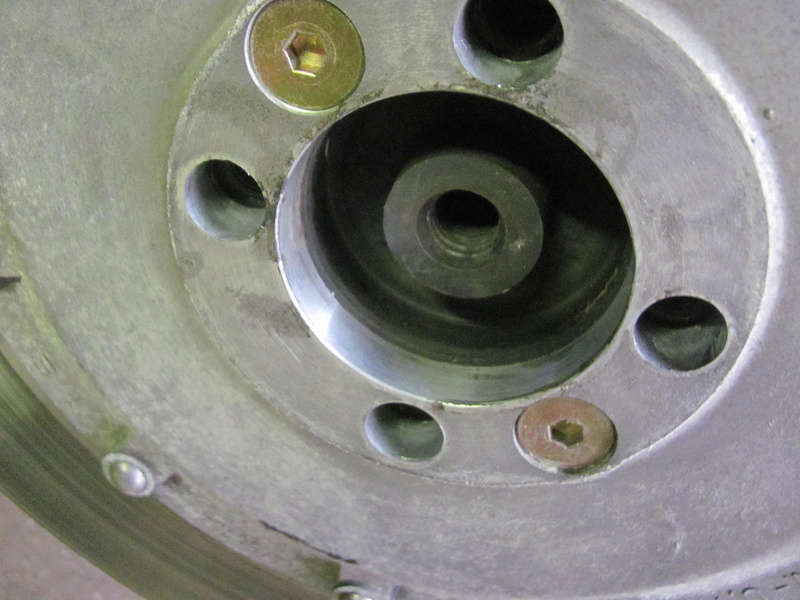

As you probably figured out I do all my own work.I'm sure most guys here do too .I read and look closely at stuff as I take it apart and have a good understanding how stuff works.So today I pulled the rear wheel off to mount a new tire. No big deal,a simple straight forward job.I read the service manual about the torquing of the lugs and in there they were talking about a center bolt as well as the 4 lugs.I pull off the plastic hub cap and there is no center bolt.I look with a light and I see threads in there so I pull off the wheel to look .I see that there is a threaded part of the rear drive shown in the first photo here So I go out and buy a grade 8 bolt the right size and some grade 8 washers ,put the wheel back on and realize if I use the center bolt there is no way to install the hub cap .so my question is two parts, did the 1988 K100rs not have a center bolt or was there some sort of washer that had flats leaving enough space for the hub cap mounting tabs to fit into that large center hole in the rim ?Rear Wheel Question Img_3512
Rear Wheel Question Img_3514
Rear Wheel Question Img_3513Rear Wheel Question Img_3512


__________________________________________________
1988 K 100RS ,1975 Moto Guzzi 850-T , 1971 BMW R60/5 , 1971 Yamaha R5B,1969 Yamaha DS6C ,1966 Yamaha YM1 , 1965 Yamaha YDS3
https://motoguzzi850t.blogspot.com/


2Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Mon Nov 06, 2017 7:10 pm

yamaguzzi

yamaguzzi
Life time member
Life time member
Rear Wheel Question Img_3515
Well,I answered my own question by looking in a different book. There is no center bolt so it wasn't missing. now I can fit the new tire and move forward to the front wheel.


__________________________________________________
1988 K 100RS ,1975 Moto Guzzi 850-T , 1971 BMW R60/5 , 1971 Yamaha R5B,1969 Yamaha DS6C ,1966 Yamaha YM1 , 1965 Yamaha YDS3
https://motoguzzi850t.blogspot.com/


3Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Mon Nov 06, 2017 7:25 pm

Laitch

Laitch
Life time member
Life time member
Is there a spacer washer between the rear wheel and the final drive?


__________________________________________________
1995 K75 90,000 miles


4Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Mon Nov 06, 2017 8:32 pm

yamaguzzi

yamaguzzi
Life time member
Life time member
Yes a thin washer that the 4 lugs go thru as pictured in the book


__________________________________________________
1988 K 100RS ,1975 Moto Guzzi 850-T , 1971 BMW R60/5 , 1971 Yamaha R5B,1969 Yamaha DS6C ,1966 Yamaha YM1 , 1965 Yamaha YDS3
https://motoguzzi850t.blogspot.com/


5Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Mon Nov 06, 2017 9:19 pm

Laitch

Laitch
Life time member
Life time member
All you need now is good weather. cheers


__________________________________________________
1995 K75 90,000 miles


6Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Tue Nov 07, 2017 6:35 am

charlie99

charlie99
VIP
VIP
I think later series paralever rear end ..like on k100 16 valves and k1100 are the only ones with the centre bolt fitted

from what I have seen none of the "bevel" rear ends ...k100 x 8 valves had them fitted at all

just the washer- spacer between wheel and drive

the cover fits all similar models

obviously the cover off the later models has issues

hope that helps


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


7Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Tue Nov 07, 2017 7:17 am

Dai

Dai
Life time member
Life time member
I believe Charlie to be right. There's no point in machining no-thread wheels for one run of bikes and then threading them for another type - if the wheel is the same style on both bikes, it's far more economical to make them all the same on the production line.


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


8Back to top Go down   Rear Wheel Question Empty Re: Rear Wheel Question Wed Nov 08, 2017 7:06 pm

JR_K100RS

JR_K100RS
Life time member
Life time member
When I fitted a 4.5x18 inch 3 spoke rear wheel to my bike the centre wheel cap engages into a cup that is held in place by the centre bolt

John Re

Melbourne Australia


__________________________________________________
Diamond Grey ( 617 ) 1987 K100RS ( European Delivery ) Original owner
