I am Working on my cafe project and part of it is replacing the controls with GSXR controls with a standard (Left-Off-Right) switch but I didn't want to chop up the harness any more than I already had. So Adding an Electronic flasher and a couple of micro relays to keep them hidden in the existing electrical box. here's a quick ugly diagram which works great on my setup.

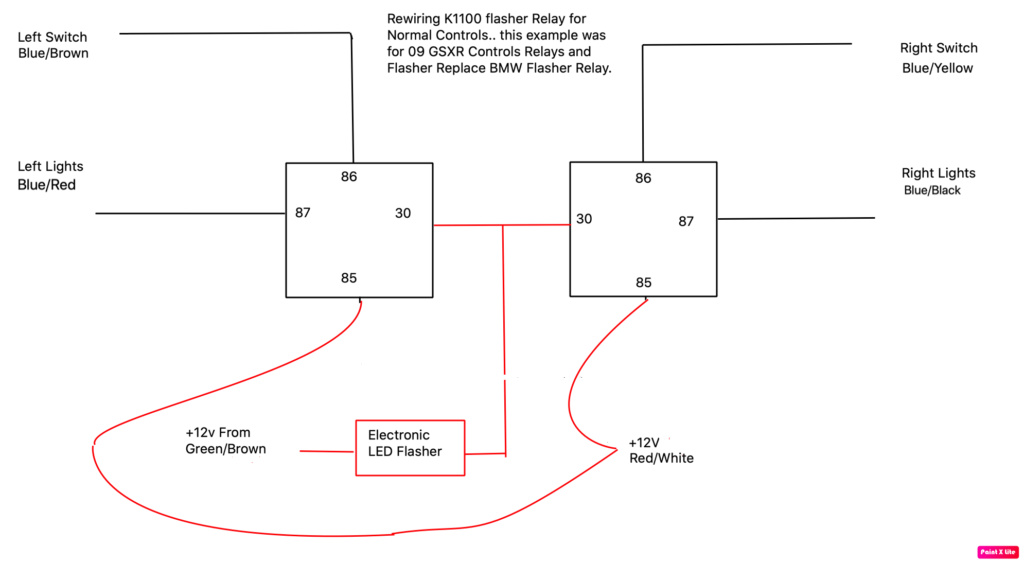

Removing OEM Flasher Relay brick to wire in alternate handlebar switches K1100_11



Last edited by Scottybullet on Wed May 15, 2019 12:50 am; edited 1 time in total



duck

duck
Life time member
Life time member
Blue/black is right. Blue/red is left.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT (x2)
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


Scottybullet

Scottybullet
active member
active member
duck wrote:Blue/black is right. Blue/red is left.
Thanks, Long day. Updated... at least I wired mine properly Smile
