Hi everyone,

After winter hiatus in Norway, I'm coming out of the woodwork again but with a start-up problem : My belly-pan "attachment frame" sheared its two left-side attachment points (see drawing), leaving the belly-pan dangling.

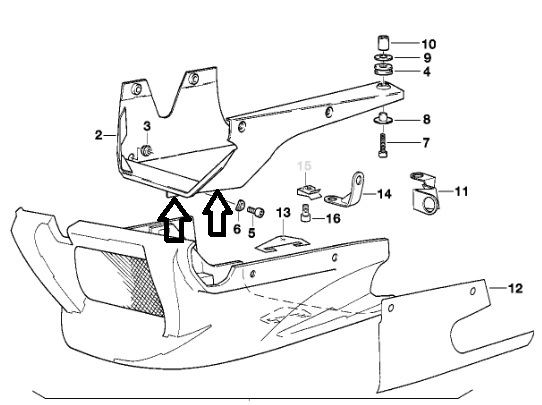

Bellypan attachment frame Bellyp10

When I had disassembled everything, I realized that the drawing didn't match the bike setup.
The drawing shows 2 screws bolted straight into the engine block whereas I have 2 fat rubber grommets between the engine block and the "attachment frame" - like a shock absorbing buffer. The rubber grommet sheared in half (into two donuts with half the height) and now one half is stuck in the engine block. No screw actually went all the way through the grommet, it looks like it had one male end screwing into the engine block and one female facing the "attachment frame" side.

I believe I can remove the rubber grommet, my real question is whether this is a standard setup and if so, does anyone know the part number of this fat grommet that I need to replace ?

I hope the problem description makes somewhat sense.

Your input would be highly appreciated as I really like the look of the bike with the belly-pan on.

Best regards,
Einar/


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


2Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed Apr 29, 2020 8:47 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
The rubber side grommets are NLA from BMW now. I have the same set up as your bike (not like the ETK parts diagramme you've included). I had to search around in my old BMW stock and then auto parts shops to find a grommet that would work acceptably. If you have another look at ETK you'll see the other bellypan frame. This is more like what you have from your description. 71 60 2 303 840 is the part number for the discontinued grommet which slips over a threaded stud with only a slotted head for adjustment.

HERE  is a link to www.realoem.com/bmw for the alternate bellypan mounting arrangement.


__________________________________________________

Sometimes I lie awake at night, and I ask, "What can I do to keep my life from going by so fast?" Then a voice comes to me that says, "Try slowing down at the corners."

~Charlie Brown

1970 R60/5, '77 R75/7-R100, '85 K100'87 K75C, '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-Polizei  - Beemers owned still or sold.



3Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 11:59 am

ERasberg

ERasberg
Silver member
Silver member
Fantastic. Thank you for the help and quick response. That clarifies it for me.
Much appreciated.
Best regards
Einar


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


4Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 1:17 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
Goodo. I hope you get somewhere with it.  Bellypan attachment frame 112350


__________________________________________________

Sometimes I lie awake at night, and I ask, "What can I do to keep my life from going by so fast?" Then a voice comes to me that says, "Try slowing down at the corners."

~Charlie Brown

1970 R60/5, '77 R75/7-R100, '85 K100'87 K75C, '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-Polizei  - Beemers owned still or sold.



5Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 1:50 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
Speaking of bellypans if anyone's in need or desire of one, these blokes in the UK are still making a quality replacement piece that looks the biz. It comes and goes from eBay, but HERE  is a link to the eBay sale, currently unavailable but regularly updated. It's Flat Racer if you prefer to use their website instead of eBay.


__________________________________________________

Sometimes I lie awake at night, and I ask, "What can I do to keep my life from going by so fast?" Then a voice comes to me that says, "Try slowing down at the corners."

~Charlie Brown

1970 R60/5, '77 R75/7-R100, '85 K100'87 K75C, '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-Polizei  - Beemers owned still or sold.



6Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 3:06 pm

ERasberg

ERasberg
Silver member
Silver member
@Two Wheels Better wrote:Goodo. I hope you get somewhere with it.  Bellypan attachment frame 112350

Yes that really helped. I think a long screw with some kind of a spacer could do the same job.

And those belly pans do look good. I need to repaint mine but perhaps i'm better off buying a new one, price-wise it might add up to about the same.


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


7Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 4:02 pm

Bonzo

Bonzo
Platinum member
Platinum member
@Two Wheels Better wrote:Speaking of bellypans if anyone's in need or desire of one, these blokes in the UK are still making a quality replacement piece that looks the biz. It comes and goes from eBay, but HERE  is a link to the eBay sale, currently unavailable but regularly updated. It's Flat Racer if you prefer to use their website instead of eBay.
Thanks for posting this info TWB.

Great to know  Bellypan attachment frame 112350



8Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu Apr 30, 2020 5:00 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
@Bonzo wrote:
@Two Wheels Better wrote:Speaking of bellypans if anyone's in need or desire of one, these blokes in the UK are still making a quality replacement piece that looks the biz. It comes and goes from eBay, but HERE  is a link to the eBay sale, currently unavailable but regularly updated. It's Flat Racer if you prefer to use their website instead of eBay.
Thanks for posting this info TWB.

Great to know  Bellypan attachment frame 112350
No dramas. It's good to keep current with what's around for our dear girls.


__________________________________________________

Sometimes I lie awake at night, and I ask, "What can I do to keep my life from going by so fast?" Then a voice comes to me that says, "Try slowing down at the corners."

~Charlie Brown

1970 R60/5, '77 R75/7-R100, '85 K100'87 K75C, '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-Polizei  - Beemers owned still or sold.



9Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed May 06, 2020 4:50 pm

ERasberg

ERasberg
Silver member
Silver member
Hi everyone,

I revert back to the original topic of the thread (although I do love when threads take their own life).

The famous two bolts that sheared have put me in a bit of a pickle. Basically I need some advise on how to get them out.
As seen from the pictures, I removed all the rubber and am left with a flat head with no way (?) to unscrew the bolt. Hence I probably have to drill it out somehow.

Only..it's the engine block and no margin for error and all that. I therefore want to make sure I have exhausted all other options.
Any ideas how I could go about getting these two out ?

Bellypan attachment frame 20200511
Bellypan attachment frame 20200510
Bellypan attachment frame 20200512


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


10Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed May 06, 2020 5:13 pm

stanthomas

stanthomas
active member
active member
Just grab that disc with a mole/vice grip and twist it out. It's the rubber that's come off, leaving the flange and stud in the hole - see "mini exhaust mounting bobbin" top get the idea.



11Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed May 06, 2020 5:59 pm

ERasberg

ERasberg
Silver member
Silver member
@stanthomas wrote:Just grab that disc with a mole/vice grip and twist it out. It's the rubber that's come off, leaving the flange and stud in the hole - see "mini exhaust mounting bobbin" top get the idea.

Thanks for the tip. that's exactly the part i have been looking for.
The mole/vice grip is a good idea. Thanks.


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


12Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed May 06, 2020 8:44 pm

Point-Seven-five

Point-Seven-five
Life time member
Life time member
Vise Grips work the treat.  I've done that trick at least 3 times on my bikes.  Sometimes you have to use the long nose version to be able to get in for the grip.


__________________________________________________
Present:
1994 K75RT
1991 K100RS
1988 K100RS SE

Past:
1994 BMW K75S
1992 BMW K100RS
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


13Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Wed May 06, 2020 9:03 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
Yeah, what they've said above. Grab 'em and they twist. Another method is to cut a slot in the rubber/metal underneath and unscrew them with a large bladed screwdriver. Replacements mounts are common like radiator or external fuel pump mounts if you don't care to visit your local dealership.


__________________________________________________

Sometimes I lie awake at night, and I ask, "What can I do to keep my life from going by so fast?" Then a voice comes to me that says, "Try slowing down at the corners."

~Charlie Brown

1970 R60/5, '77 R75/7-R100, '85 K100'87 K75C, '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-Polizei  - Beemers owned still or sold.



14Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Thu May 07, 2020 5:22 am

Dai

Dai
Life time member
Life time member
If you're going to use molegrips then two things:-

1. Try and file a flat on either side of the bobbin to provide more gripping area
2. Put the molegrips in a vice and file the nose flat.

See here:- https://www.k100-forum.com/t15894-bike-to-good-home. Post 18 - click on the picture links.


__________________________________________________
'83 K100 upgraded to K100RS spec, '87 K100RT
Others...
'78 Moto Guzzi 850-T3, '79 Moto Guzzi 850-T3 California,'93 Moto Guzzi 1100ie California


15Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Sun May 10, 2020 4:50 pm

ERasberg

ERasberg
Silver member
Silver member
@dai and @TWB
thank you for those tips. I will try that approach. Post 18 was useful !


__________________________________________________
Present
1988 K100 RS SE - VIN# 0146971K100RS - 105,000 km
1998 R1200C
1971 R75/5

Previous
1999 Virago XV125
1981 R65


16Back to top Go down   Bellypan attachment frame Empty Re: Bellypan attachment frame on Mon Jun 08, 2020 6:03 pm

ERasberg

ERasberg
Silver member
Silver member
Update.

I managed to get it sorted using the mole grip and a hammer, as you prescribed.
I also found the rubber grommets at a local store and I think they will do the job. They also have a 24mm hex connection so I won't have to do this job again.

Now onto fixing the belly pan frame and getting the belly pan painted.
I do love the look of the bike with the whole assembly mounted.

Thanks guys, I really appreciate your willingness to take time out of your schedule to help a newbie like me.

Sincerely,
Einar/

Bellypan attachment frame 20200610
