1Back to top Go down   Mystery missing fastener Empty Mystery missing fastener Sun May 23, 2021 12:34 pm

James P

James P
active member
active member

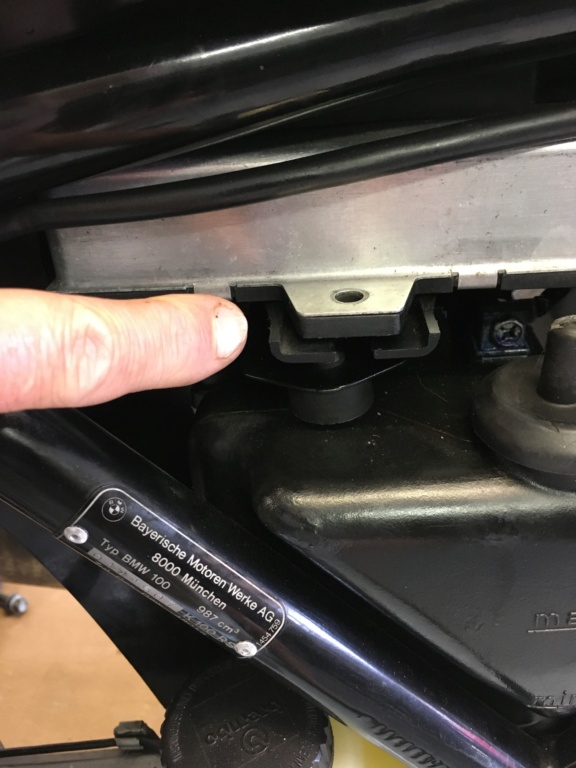

Mystery missing fastener Img_0110
Hello all,
when I removed the offside triangular side fairing panel to get better access to the top suspension mount I found this situation. There appears to be a missing fastener but I cannot see anything in Haynes or Clymer to assist me. If I may post a photo ( Shocked ) this will show what I can’t see. My fat index digit indicates the area. All responses welcomed (with photos of what should be there if they are permitted!).
BW,
J



2Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 1:03 pm

Two Wheels Better

Two Wheels Better
Moderator
Moderator
The rubber absorber for the coolant bottle & battery holddown.

Post you bike's specifics in the signature section of your profile so it appears to us - less guessing over details particular to different models.


__________________________________________________

1970 R60/5, OZ '77 R75/7-R100, '85 K100'87 K75C, OZ '87 K100RS, '93 K11-K12 Big Block, '93 K1100RS, '95 R100-Mystic, '96 K1100RS, '98 K1200RS, '00 K1200RS, '02 K1200RS, '03 K1200GT, '04 R1150R'04 R1150RT, '05 K1200S, '06 K1200R, '07 K1200R, '09 K1300GT & 2013 R1200RT-P  - Beemers owned still or sold.

~We all believe what we want to believe in - Rob Dickinson


3Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 1:17 pm

Laitch

Laitch
Life time member
Life time member
@James P wrote: this will show what I can’t see. My fat index digit indicates the area.
How do you know it's showing something if you can't see it? Smile This reminds me of a sign I saw painted on the side of a window shade installer's truck when I was a kid, This truck is being driven by a blind man. Also, next time, use a pencil point, shishkebab skewer or fencing foil as a pointer.

Like TWB indicates, here's a photo from Haynes.
Mystery missing fastener Scree149


__________________________________________________
1995 K75 81,000 miles
Mystery missing fastener Usa-lo10


4Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 1:49 pm

Ringfad

Ringfad
Life time member
Life time member


__________________________________________________
Mystery missing fastener Ir-log10

   ;BMW; K100RS Style Black 1987 105K Km     ;BMW; K1 Black 1993 60K Km     ;BMW;  K1100RS Blue 1994       ;BMW; K1 Blue 1990 25K Miles


5Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 2:45 pm

James P

James P
active member
active member
Ringfad,
Thank you, I’ll add it to the next shopping list.
J


__________________________________________________
1986 K100RS in Carabik blue.


6Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 2:52 pm

Arlina

Arlina
Moderator
Moderator


__________________________________________________
Mystery missing fastener Eu-log10  K1100RS/LT - R1200RT - R1100RS (RIP) - Cagiva SST 350 Ala Verde - K75LT project - K75 Schurgers - K75S


7Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 2:57 pm

Laitch

Laitch
Life time member
Life time member
Here is the part from Ringfad's reference as it is oriented in Hayne's photo, its top portion protruding through the hole. Its shaft would engage the grommet in the diagram Arlina provided.
Mystery missing fastener Screen10


__________________________________________________
1995 K75 81,000 miles
Mystery missing fastener Usa-lo10


8Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Sun May 23, 2021 3:05 pm

Dai

Dai
Life time member
Life time member
25mm M6 allen bolt with two penny washers and a nylock nut. Problem solved Very Happy Or if you're feeling particularly lazy and the rubber washer isn't perished i.e. it's gripping the bolt pretty well, you can forget one penny washer and the nylock nut.


__________________________________________________
1983 K100 upgraded to K100RS spec, 1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


9Back to top Go down   Mystery missing fastener Empty Re: Mystery missing fastener Mon May 24, 2021 4:59 am

BobT

BobT
Life time member
Life time member
@Laitch wrote:
@James P wrote: this will show what I can’t see. My fat index digit indicates the area.
How do you know it's showing something if you can't see it? Smile This reminds me of a sign I saw painted on the side of a window shade installer's truck when I was a kid, This truck is being driven by a blind man. Also, next time, use a pencil point, shishkebab skewer or fencing foil as a pointer.
Reminds me of a TV news report I once watched while on a visit to Wales. The towns shed had been nicked from next to the bowling green. The reporter interviews Mrs Davis who made a statement: "I walked around the corner and there it was - gone!" This has made me smile, every time that I think about it, for years now.
