Hi everyone,

I decided to perform a spline lube today. Below pics showing how they look after I cleaned the grease off. Do the splines look good to you? TIA!

Final Drive Splines Img_0821
Final Drive Splines Img_0823
Final Drive Splines Img_0822



2Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 2:55 am

Arlina

Arlina
Moderator
Moderator
Looks new to me Smile


__________________________________________________
Final Drive Splines Eu-log10  K1100RS/LT - R1200RT - R1100RS (RIP) - Cagiva SST 350 Ala Verde - K75LT project - K75 Schurgers - K75S


3Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 3:29 am

Rick G

Rick G
admin
admin
The teeth of the splines on the drive shaft have a small amount of wear and the drive unit looks quite good, so slop some moly grease(at least 50% moly) and shove them back in.


__________________________________________________
"Man sacrifices his health in order to make money.
Then he sacrifices money to recuperate his health.
And then he is so anxious about the future that he does not enjoy the present; the result being that he does not live in the present or the future; he lives as if he is never going to die, and then dies having never really lived."   Dalai Lama


Bikes 2004 K1200GT 1998 K1100 LT, 1986 K75 GS.


4Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 8:07 am

Point-Seven-five

Point-Seven-five
Life time member
Life time member
+1 on RickG's reply. When looking at the splines look at the top, it should be nice and wide and flat. From the end, they should have a trapezoidal shape, wear is indicated when they start to look triangular at the end.

Many of us use Hondamoly lube on our splines. The current version is 70% molybdenum. I lube my splines with it once a year, and they have held up very well. My K75RT is closing in on 100,000 miles and the splines still look new.

BTW, grab the end of your drive shaft with vise grips and give it a good yank to pull it out of the swingarm so you can lube the front end and check the universal joint for stiffness and notching in it's motion. Normally, the splines at the front end don't wear, but as long as you are in there, it's a good idea to show them a little love.


__________________________________________________
Present:
1994 K75RT
1991 K100RS


Past:
1988 K100RS SE
1994 BMW K75S
1992 BMW K100RS
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


5Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 8:40 pm

bmwk100rs

bmwk100rs
Silver member
Silver member
@Arlina, @RickG, and @Point-Seven-five

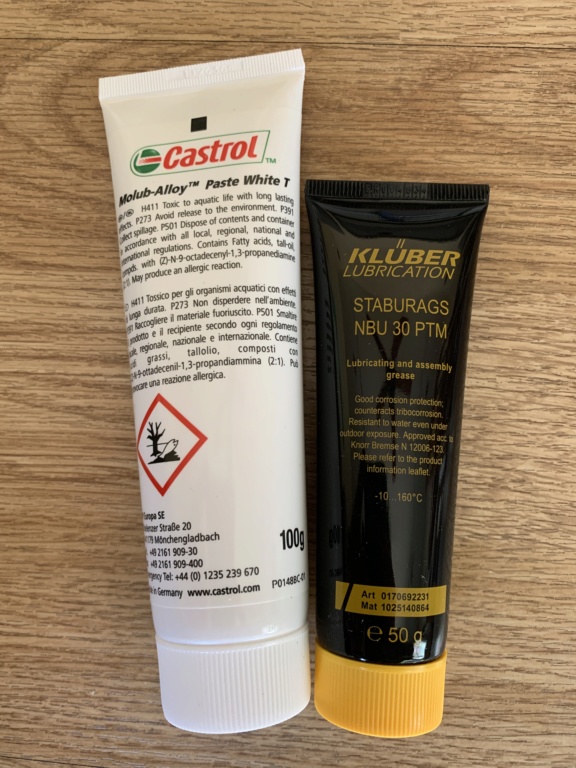

Thank you for confirming the condition and the suggestions.  Regarding lube, have you used the Castrol Molub-Alloy Paste White T as lube for the splines before or should I just stick with Staburags NBU 30?

Final Drive Splines Img_0824



6Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 9:00 pm

MartinW

MartinW
Life time member
Life time member
The white paste has been superseded by the silver paste Molub-Alloy Paste TA. BMW part No 18 21 9 062 599.
Regards Martin.


__________________________________________________
K75s Hybrid


7Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 9:19 pm

bmwk100rs

bmwk100rs
Silver member
Silver member
MartinW wrote:The white paste has been superseded by the silver paste Molub-Alloy Paste TA.

MartinW,

Let me see I follow.  Are you saying that the Molub-Alloy Paste TA superset Molub-Alloy Paste T, which both are better than Staburags NBU 30?  If so, then I'm glad you pointed that out since I didn't what was the difference between the T vs the TA.  Thanks!

Final Drive Splines Img_0825



8Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Thu Jul 01, 2021 9:50 pm

MartinW

MartinW
Life time member
Life time member
Everyone seems to have their favourite. I think that as long as it has a high moly content 50%+ and you lube at least every rear tyre change you're fine. I've had my Brick for 20+ years and 178,000 K's and until the Castrol white T was superseded by the Silver TA I used it, I'm now using the silver TA.
Regards Martin.


__________________________________________________
K75s Hybrid


9Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Fri Jul 02, 2021 11:14 pm

bmwk100rs

bmwk100rs
Silver member
Silver member
Point-Seven-five wrote:grab the end of your drive shaft with vise grips and give it a good yank to pull it out of the swingarm so you can lube the front end and check the universal joint for stiffness and notching in it's motion.  Normally, the splines at the front end don't wear, but as long as you are in there, it's a good idea to show them a little love.

@Point-Seven-five,

I remove the swing case to better yank the shaft, but I still cannot pull it out.  Is there any clip that I need to remove first?

Final Drive Splines Img_0826



Last edited by bmwk100rs on Sat Jul 03, 2021 12:00 am; edited 1 time in total



10Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Fri Jul 02, 2021 11:37 pm

Rick G

Rick G
admin
admin
There is an internal snap ring so just give it a solid jerk and it will come off, be sure to seat it back when replacing it.


__________________________________________________
"Man sacrifices his health in order to make money.
Then he sacrifices money to recuperate his health.
And then he is so anxious about the future that he does not enjoy the present; the result being that he does not live in the present or the future; he lives as if he is never going to die, and then dies having never really lived."   Dalai Lama


Bikes 2004 K1200GT 1998 K1100 LT, 1986 K75 GS.


11Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Sat Jul 03, 2021 1:11 am

bmwk100rs

bmwk100rs
Silver member
Silver member
RicK G wrote:give it a solid jerk and it will come off..

Got it out.  Thanks RicK G!



12Back to top Go down   Final Drive Splines Empty Re: Final Drive Splines Sat Jul 03, 2021 1:28 am

Rick G

Rick G
admin
admin
:BW:
