1Back to top Go down   Clutch Centering Alignment Tool Empty Clutch Centering Alignment Tool Wed Aug 18, 2021 9:42 pm

bmwk100rs

bmwk100rs
Silver member
Silver member

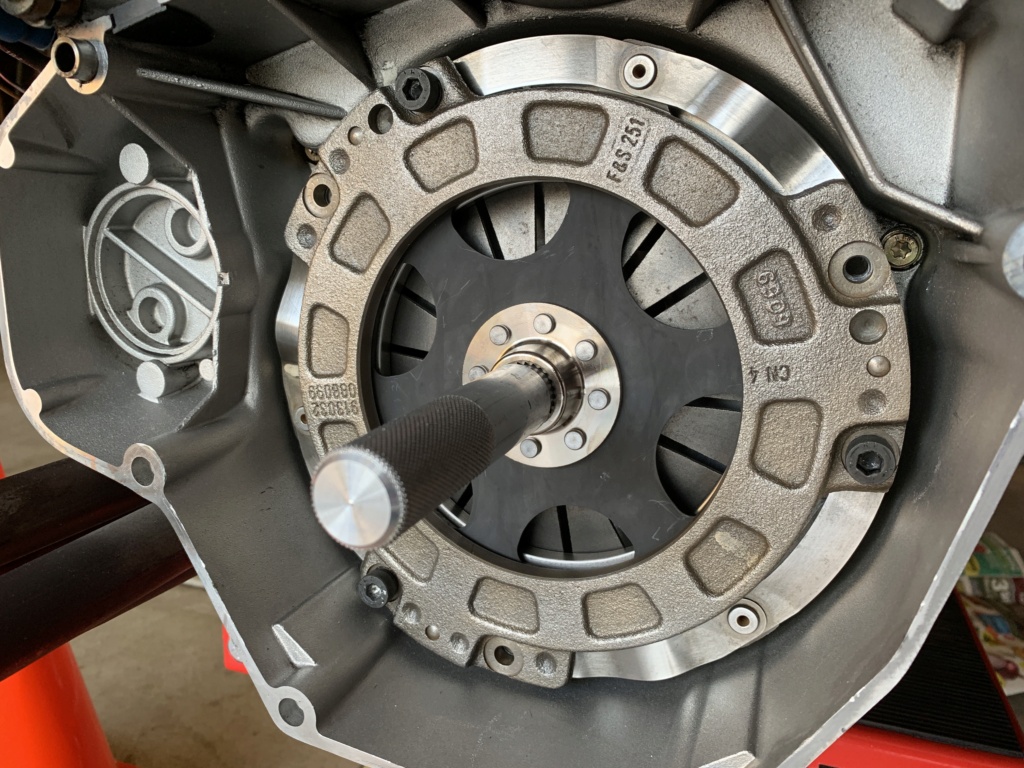

Can the clutch centering-alignment tool bind a little bit or does it have to rotate completely free as Chris Harris suggests?  Mine was rotating free until after I torqued the final two screws in the star sequence. Should I undo them and reposition it again?

https://youtu.be/RybnCX6PlIE?t=384

Clutch Centering Alignment Tool Img_0932



2Back to top Go down   Clutch Centering Alignment Tool Empty Re: Clutch Centering Alignment Tool Thu Aug 19, 2021 2:33 am

Arlina

Arlina
Moderator
Moderator
Has to turn free.
Unbolt, and try again.


__________________________________________________
Clutch Centering Alignment Tool Eu-log10  K1100RS/LT - R1200RT - R1100RS - Cagiva SST 350 Ala Verde - K75LT project - K75 Schurgers - K75S - K1100RS - K75RT - K75C


3Back to top Go down   Clutch Centering Alignment Tool Empty Re: Clutch Centering Alignment Tool Thu Aug 19, 2021 4:53 pm

Laitch

Laitch
Life time member
Life time member
Your photo seems to indicate that you fastened only three screws, bmwk100rs. This time, gradually and sequentially fasten all six screws while checking centering tool rotation.
Clutch Centering Alignment Tool Img_0910


__________________________________________________
1995 K75 86,000 miles
Clutch Centering Alignment Tool Usa-lo10


4Back to top Go down   Clutch Centering Alignment Tool Empty Re: Clutch Centering Alignment Tool Fri Aug 20, 2021 10:59 pm

bmwk100rs

bmwk100rs
Silver member
Silver member
Unbolted, readjusted, and re-torqued. It turns free now. Thank you, both!
Clutch Centering Alignment Tool Aligne10
